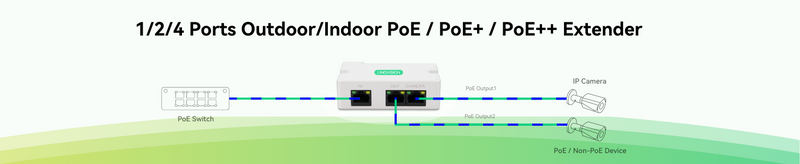

PoE Extenders or PoE Repeaters can extend the connection distance between the PoE Injector or PoE switch (PSE) and the PoE edge device (PD) . The PoE extender is installed in-line between the PSE and the PD. Each side the connection distance can be 100 meters. Some PoE extenders allow you to daisy-chain multiple units, pushing the total connection distance past 300 meters.
Besides extending the transmission distance, POE Extender or POE Splitter is also designed to supply POE power to two/four POE devices through one Cat5E/6 cable, and no power adapter is required. It is also called by POE passthrough switch.

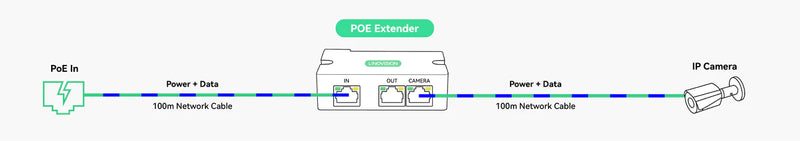

Extend extra 100m PoE transmission distance, up to 400m when using 3 levels of daisy-chain (cascade) deployment.

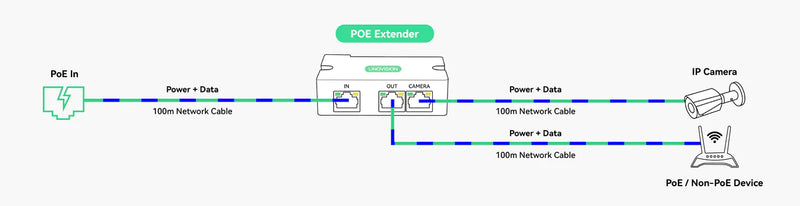

Split PoE cable to multiple PoE outputs (run one network cable to provide power and data for multiple PoE devices).
LINOVISION PoE Extender Selection Guide
Learn more >
|
Learn more >
|
Learn more >
|
Learn more >
|
|
|---|---|---|---|---|
| Model | POE-EXT3001GP | POE-EXT6002GP | POE-Extender02 | POE-EXT04 |
| PoE Input | Max 30W | Max 90W | Max 30W | Max 60W |
| PoE Output | 1 x 30W | 1 x 60W + 1 x 30W | 1 x 16W + 1 x 8W | 4 x 30W |
| PoE Standard | IEEE802.3af/at | IEEE802.3af/at/bt | IEEE802.3af/at | IEEE802.3af/at |
| PoE Budget | 30W | 90W | 30W | 60W |
| Ethernet Speed | Gigabit | Gigabit | 10/100Mbps | Gigabit |
| Waterproof | ✔ | ✔ | / | / |
| Installation Method | / | Wall-Mount | DIN-Rail/Wall-Mount | / |
