99900 249900

DS-K1TA70MI-T is a professional thermal temperature measurement terminal with access control integration, featuring facial and/or Mifare card recognition and high accuracy thermal imaging temperature measurement. The temperature measurement accuracy can be up to ± 0.5 ℃ or 0.9℉ from 1.5 meters (5ft) away. This terminal can be widely used in retail stores, office buildings, hospitals, warehouse and logistics facilities.

DS-K1TA70MI-T Introduction


Outstanding Features

  • Thermal resolution: 160x120
  • Temperature measurement accuracy: ±0.5°C (±0.9°F)
  • Non-contact temperature measurement from 0.5 - 1.5m (1.5ft to 5ft)
  • AI (Artificial Intelligence) Face detection and then accurately measure forehead’s temperature
  • 7” Touch Screen with local configuration
  • Easy setup without PC comptuer
  • Facial and/or Mifare card recognition, not-wearing-mask detection
  • 0.2S fast measurement by turning off facial recognition
  • Multiple authentication modes, temperature only, face+temperature, card+temperature, face+card+temperature
  • Audio alert when detected temperature exceeds pre-defined value

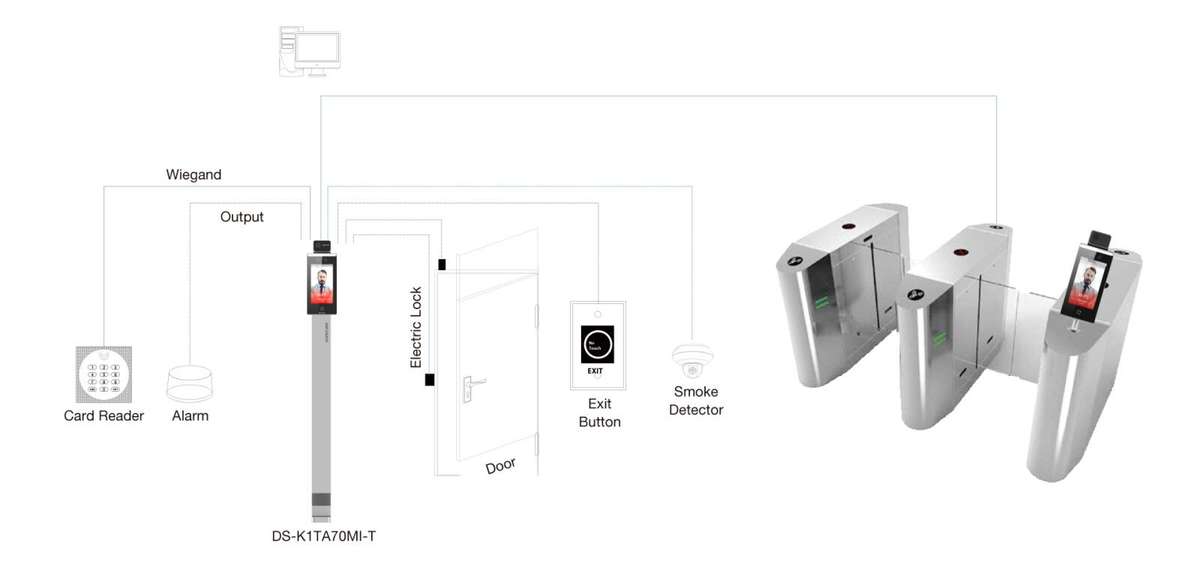

  • Integration with access control systems via Wiegand/RS485/Lock/Exit/Door contact/Tamper interfaces
  • Attendance report and advanced setting via WEB interface

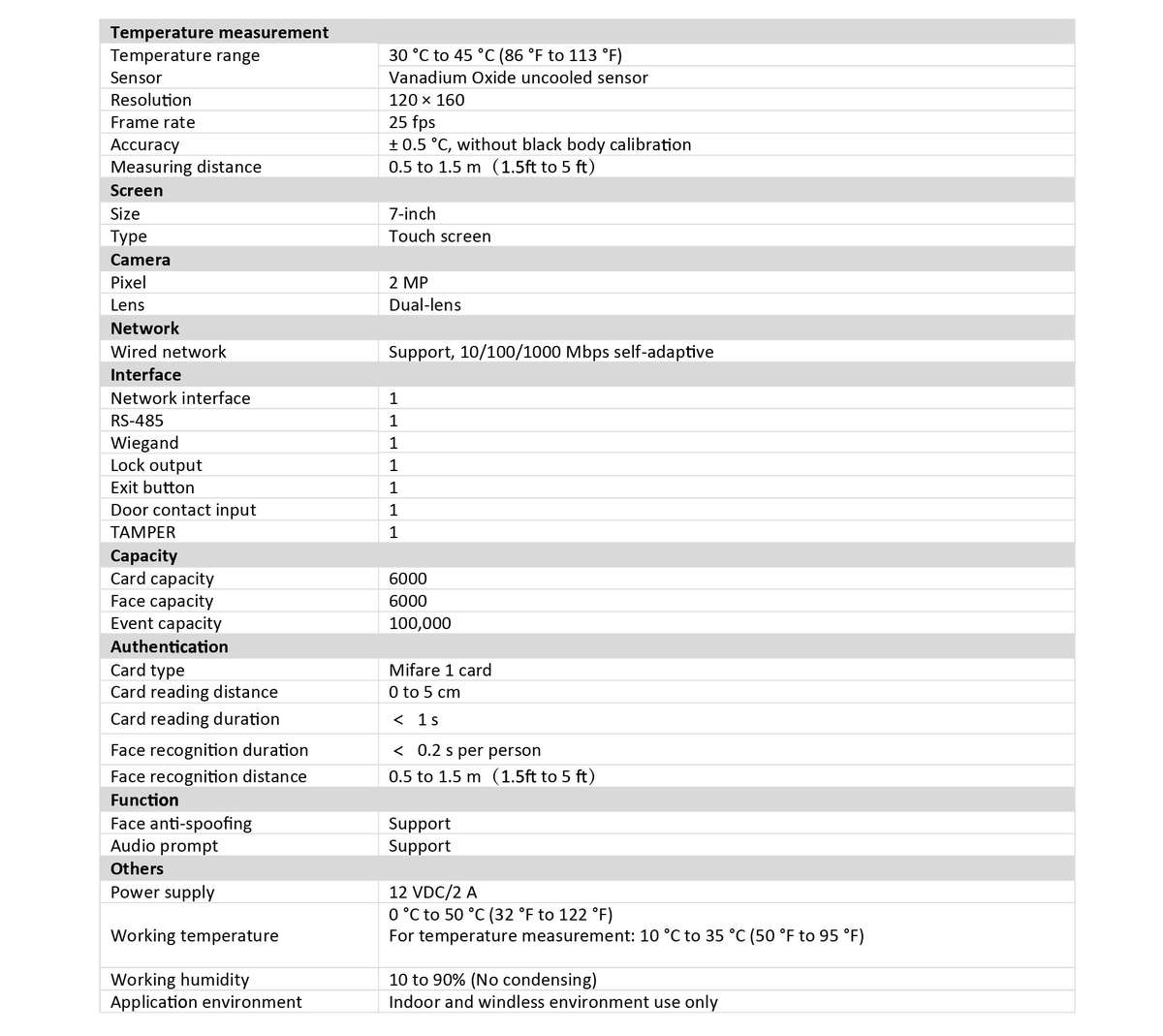

Data Sheet
