IEEE802.3af/at PoE to Passive 24V PoE Converter
$25.00 USD
In Stock Request Volume Pricing
In Stock Request Volume Pricing
x
Request for Volume Pricing Form
This field is required.
This field is required.
This field is required.
This field is required.
Please enter an integer greater than 0.
This field is required.
This field is required.
SKU: POE-SP24V(Pro)
Thank you for inquiring. Our sales team will be in touch with you shortly!
Submission failed. Please try again.
-

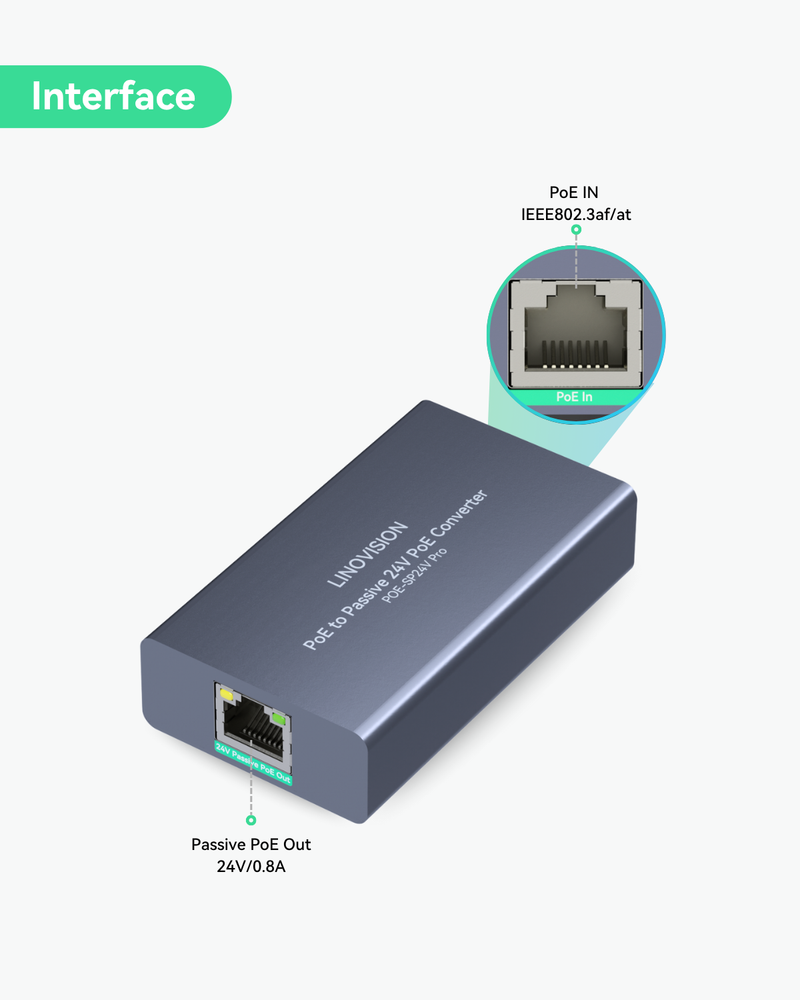

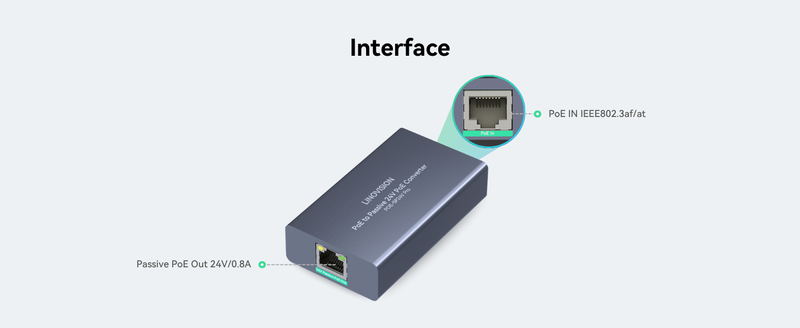

Passive 24V PoE Converter - This PoE adapter convert IEEE802.3af/at active PoE to Passive 24V PoE output (Pin Assignment:45+/78-, 20W).
-
Gigabit Speed - Supports 10/100/1000Mbps data transmission with distances up to 100 meters (330 feet) over PoE.
-
Intelligent LED Indicator - For easy checking of the connection status of the device.
-
Safe Protection - Featuring an IP40-rated metal housing, the adapter is built to withstand harsh environments, supports operating temperatures from -22℉ to 158℉（-30 to 70ºC）, and offers ESD protection up to ±2 kV.
-

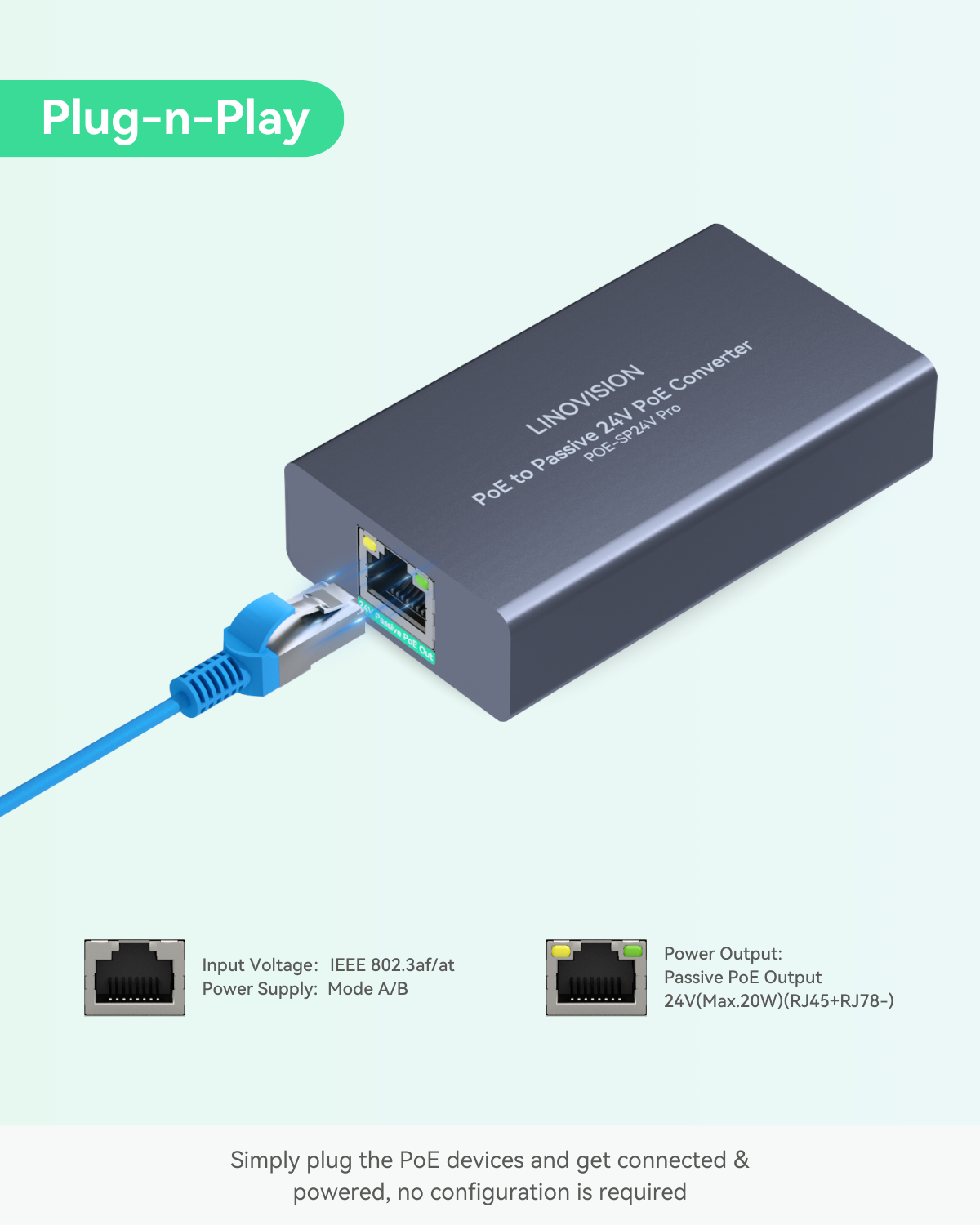

Plug-n-Play -no configuration is required.

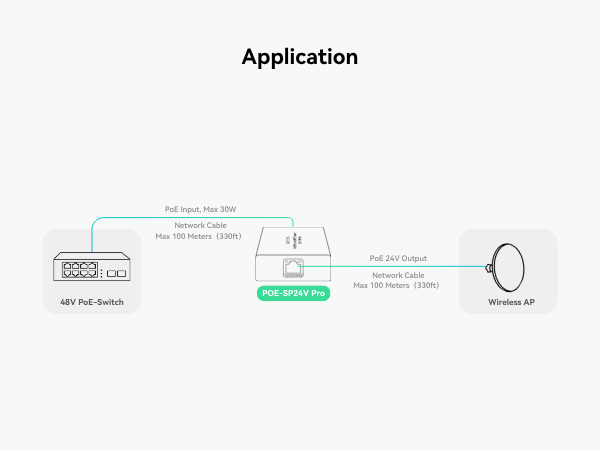

Applications：

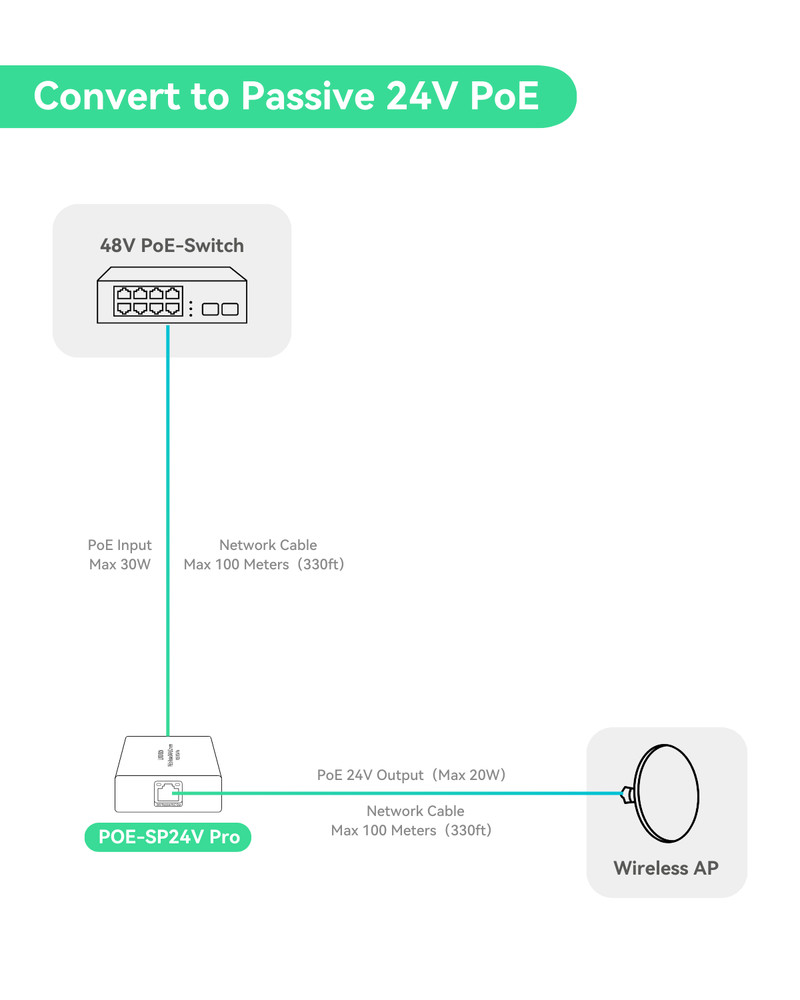

Power the 24V passively powered devices using a PoE switch or injector that delivers 48V active PoE through network cables, without the need for additional outlets or wiring.Strong compatibility with various models:
-Wireless access points (APs) and wireless bridges (including Ubiquiti UniFi, TP-Link, MikroTik, AdaLov.etc)
-Ubiquiti airMAX radios and Internet antennas (such as Bullet, Rocket, NanoStation, PowerBeam, LiteBeam, NanoBeam.etc)
-Other terminals that support Passive 24V PoE.
SKU: POE-SP24V(Pro)
