LINOVISION PoE Injector Selection Guide
Learn more >
|
Learn more >
|
Learn more >
|
Learn more >
|
Learn more >
|
Learn more >
|
|
|---|---|---|---|---|---|---|

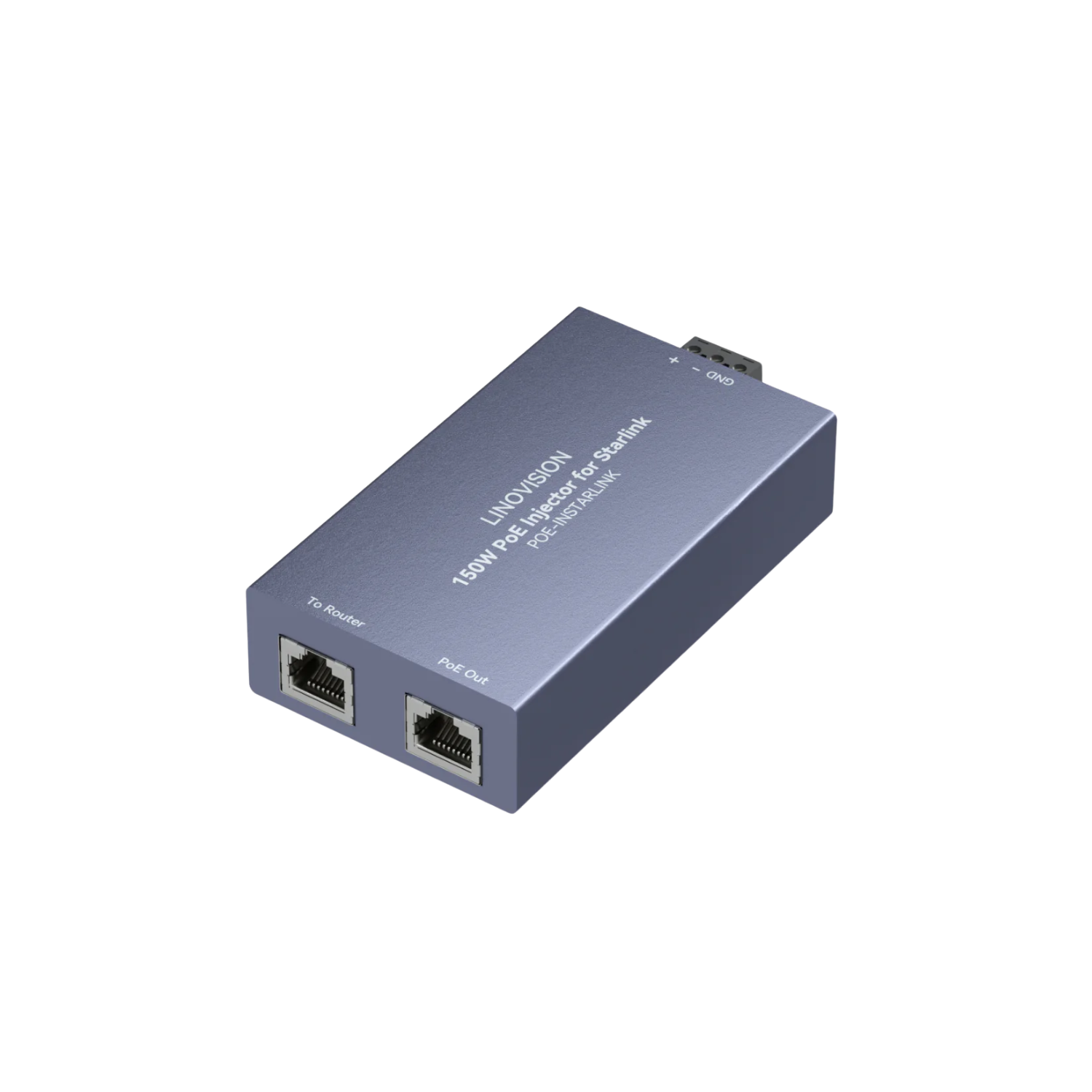

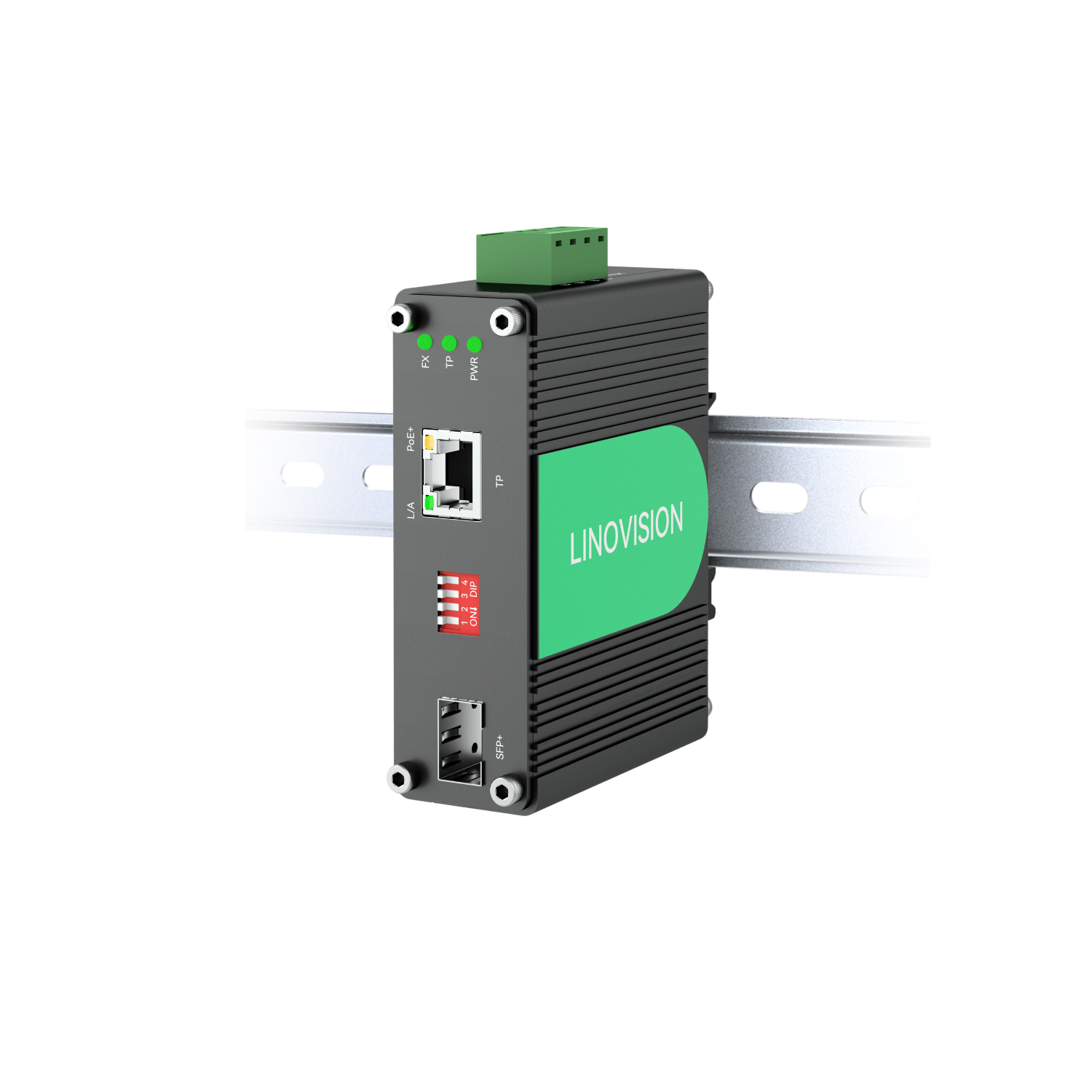

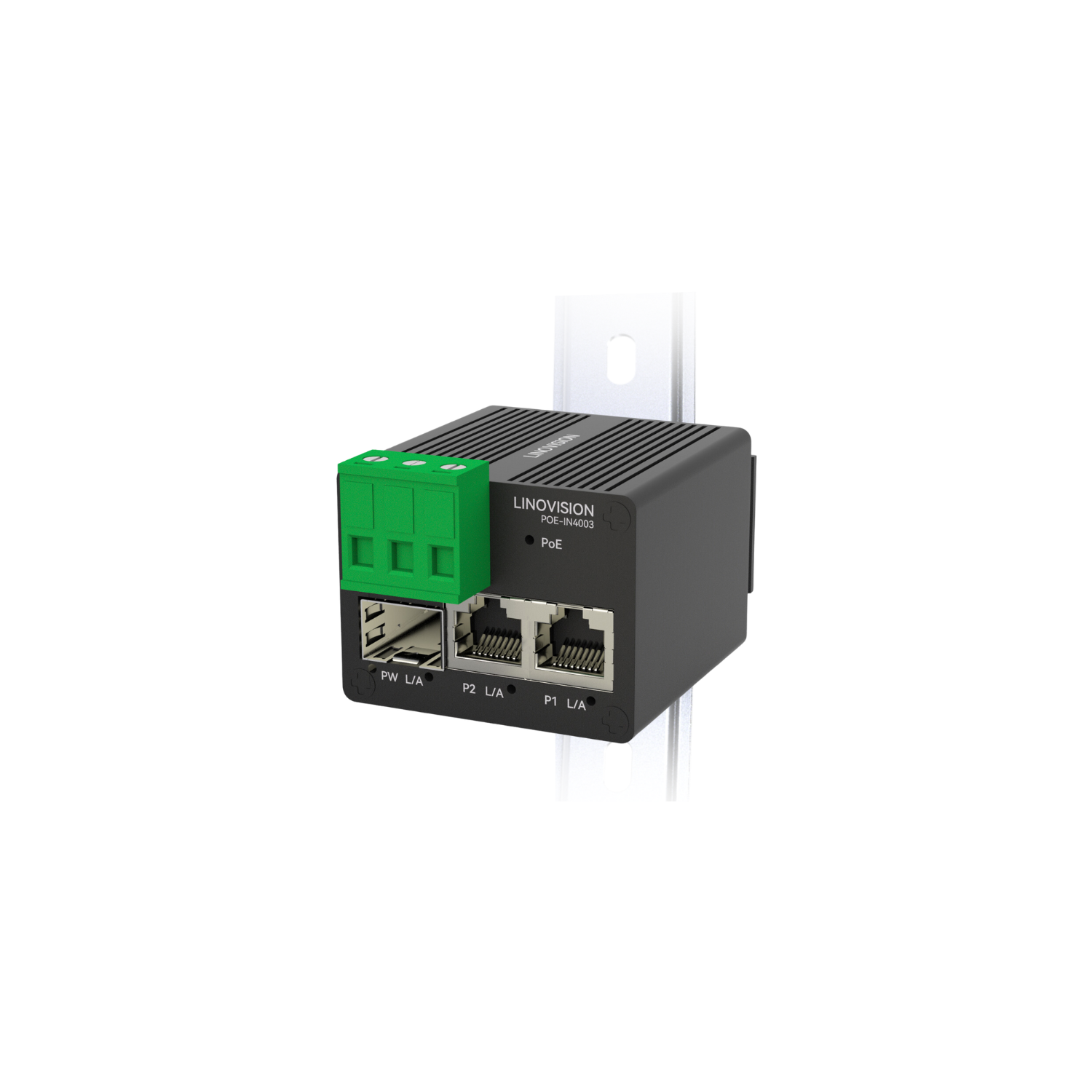

| Model | POE-IN9001U | POE-IN90W(Passive) | POE-IN4003 | POE-IN9001M12-Solar | POE-SW501GDF-10G | POE-INSTARLINK |
| PoE Input | 100 ~ 240V AC | 100 ~ 240V AC | 90 ~ 240V AC | 9~57V DC | 48~57V DC | 48~57V DC |
| Data Rate | Gigabit (Optional 10G) | Gigabit | Gigabit | Gigabit | 10G SFP+ | Gigabit |
| PoE Output | 1 x PoE++, Max 90W | 1 x Passive PoE, DC 50-56V, Max 90W |
2 x PoE+, Max 45W | 1 x PoE++, Max 90W | 1 x PoE+, 30W | 1 x PoE, Max 150W |
| PoE Standard | IEEE 802.3af/at/bt | Passive PoE(90W) | IEEE802.3af/at | IEEE 802.3af/at/bt | IEEE 802.3af/at | Passive PoE （Starlink Only） |
| PoE Pin Assignment | 3/6/4/5(+), 1/2/7/8(-) | 4/5/7/8(+), 1/2/3/6(-) | 4/5 (+), 7/8(-) | RJ45：3/6/7/8 (+)，1/2/4/5 (-)
M12：2/3/5/8(+)，1/4/6/7(-) |
1/2/4/5(+), 3/6/7/8(-) | 1/2/3/6(+), 4/5/7/8(-) |
| Dimension | 6.77x3.94x1.57"(172x100x40mm) | 6.30x2.52x1.46" (160x64x37mm) | 2.05x2.09x1.57" (52x53x40mm) | 3.74x2.75x1.14"(95x70x29mm) | 3.74x2.75x1.14"(95x70x29mm) | 2.36x0.99x3.94"(60x25x100mm) |
| Weight | 0.98lb (0.5kg) | 0.88lb (0.4kg) | 0.5 lb (0.28kg) | 0.58lb (0.3kg) | 0.452lb(0.205kg) | 0.26 lb (0.12kg) |
