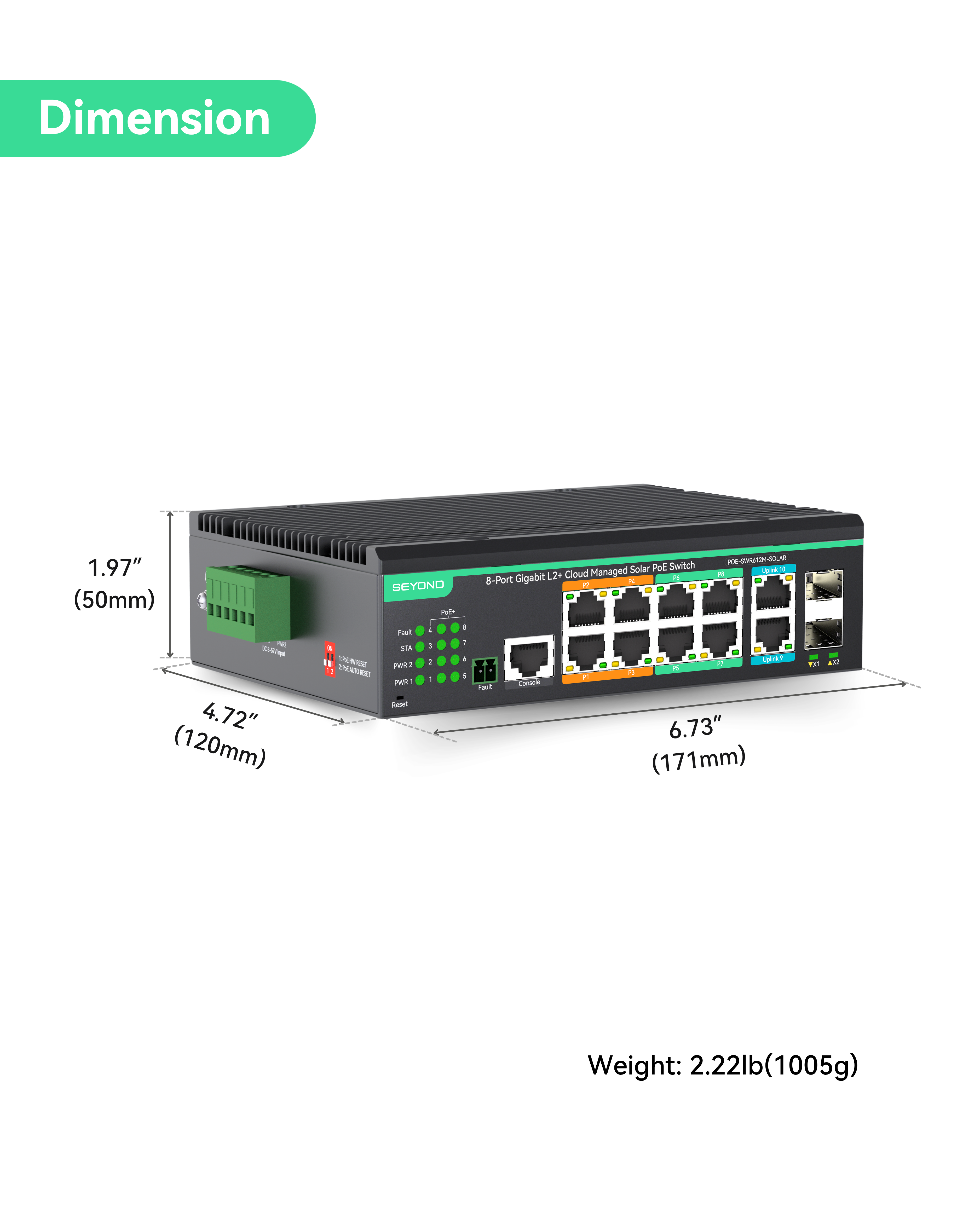

12 Ports L2+ Cloud Managed PoE Switch with DC8V to DC57V Voltage Booster
$ 4,922.17 MXN
Back Ordering
Back Ordering
- L2+ REMOTE CLOUD MANAGED PoE SWITCH - Supports L2+ management functions like VLAN, QoS, ACL, Static Routing and Link Aggregation, as well as automatic ONVIF cameras discovery. Device management through WEB GUI, Telnet, SSH, CLI, SNMP, and MQTT Cloud (RemoteMonit Cloud)
- DC8~DC57V POE VOLTAGE BOOSTER - Unlike traditional PoE Switch that requires DC 48V input from an AC power adapter, this Solar PoE Switch supports DC 8V ~ 57V input direclty from solar power system or battery and provide standard IEEE802.3af/at PoE output. It is safer and more efficient in energy use.
- 12 FULL GIGABIT PORTS - Provides 8* 30W PoE Ports, 2* Gigabit Uplink Port and 2*Gigabit SFP ports；All ports 10/100/1000Mbps self-adaptive full duplex and Backpressure half-duplex flow control. Total POE budget 240W@48V, or 180W@24V, or 70W@12V.
-
ERPS RING - High reliability with Ethernet Ring network, and higher bandwidth with Static Link Aggregation and LACP
-
REDUNDANT POWER SUPPLY - Support 2 channel DC12V-48V redundant power inputs and DIP Switch for PoE System Reset, ensure high reliability networking system.
-
INDUSTRIAL DESIGN - IP40 Metal shell & fanless design. Support DIN-rail or wall mounted installation. Wide working temperature -40℉ to +167℉（-40℃ to 75℃), 4KV surge immunity and 6KV ESD protection.
-
RELAY ALARM - It can trigger alarm event on power failure, connectivity lost, or PoE link off.
Applications
- Offer standard POE supply in solar power system (DC12V/DC18V/DC36V input)
- RV/Vehicle/Truck/Bus system (DC12V input) where need POE ports
- Suitable for UPS system (DC24V input) which need standard POE output
This item is currently on backorder but you can still purchase it now and we'll ship as soon as more become available.
SKU: POE-SWR612GM-SOLAR
