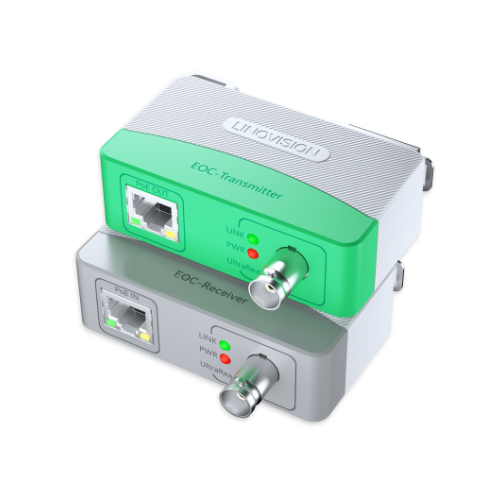

Linovision EOC-Converter is a combination of Power over Coax (PoC) and Ethernet over Coax (EOC) converter. With proprietary ePOE technology, it is designed to transmit both PoE power and ethernet data over coaxial cables or twisted pair cables, including siamese cable, CATV cable, power cable, Cat5E/Cat6, etc. The max transmission distance can be 3,300ft. It is super useful to upgrade the analog camera system to an IP surveillance system without replacing legacy coaxial cables. It can also be used in elevators to get power and network from coax or twisted pair cables.

3 Main Reasons to Use Linovision POE IP Over Coax Converters

Reason 1
Upgrade traditional analog camera system to IP surveillance system without replacing existing coaxial cable (RG59 cable)

Reason 2
Long Reach PoE up to 3,300ft

There are some situations in that users need to transmit PoE power and data over ultra-long distances, for example, power a remote security camera from 500 meters (or 1,640ft) away (from one building to another building), or supply power to a PoE IoT device from one side to another side of an underwater tube. The regular PoE extender will extend 100 meters only. Linovision innovative EOC solution, it makes possible to transmit PoE power and data over max. 1,000 meters (or 3,300ft) through regular Cat5e or Cat6 cable, this will reduce thousands of dollars in cabling cost.

Reason 3
POE +Data Transmission over Twisted pair cable, coax cable, telephone cable, doorbell camera, or any two-pin cables

There are some locations that are without network cables but still need POE power and data transmission, for example, elevator carts in many buildings, or doorbell cables, LINOVISION EOC converters are perfect for this application. It can transmit POE power and IP data over coax RG59 cable, twisted pair cable, doorbell cable, telephone cable, or even power cables. The remote-connected device can be IP cameras, IP Video intercoms, IP phones, or IP controllers, etc.

Get your PoE over Coax Converters now!

Linovision EOC-Switch08 is an 8 ports industrial PoE Switch with built-in 8 EOC Receivers. Each port is auto-adaptive to PoE mode or EoC mode. When bundled with EOC-Transmitter, it works in EoC mode and transmits PoE power and data through coaxial cable or UTP cable up to 3,300ft. All the ports are very flexible in any mode, for example, you can use 4 ports in EoC mode and another 4 ports in PoE mode. Compared to 8 pairs of EOC-Converters, it provides much-simplified cabling and reduces your cost. It also offers an unparalleled advantage for long-reach PoE power at almost 10 times longer than regular PoE switches.

Auto Adaptive

Dual DC Inputs

2 POE++ Ports

Industrial Design

Connection Diagram Comparison to 8x EOC-Converters

Connection Diagram Comparison to 8x EOC-Converters It provides much-simplified cabling if you use multiple EOC converters in a site. When upgrading the analog system to an IP surveillance system, you can choose this EOC-Switch08 + EOC-Transmitters kit to reuse legacy coaxial cables, and you can add a few extra IP cameras with UTP (Cat5E/Cat6) cables. This will be a very simple and flexible solution for you.

Long Reach PoE over UTP or Coaxial Cables when bundled with EOC-Transmitter

Long-reach PoE can be crucially important in some scenarios, such as underwater inspection systems, seaside video monitoring, dam inspection systems, mining facilities, underground pipe inspection systems, etc. Linovision EOC-Switch kit offers this state-of-the-art solution to add PoE devices or DC12V IoT terminals at remote sites without power input.

Choose a EOC-Switch Bundle

EOC-Switch0802 KIT

$499.00 USD

EOC-Switch0804 KIT

$499.00 USD

EOC-Switch0806 KIT

$499.00 USD

EOC-Switch0808 KIT

$499.00 USD

Specification of EOC-Switch08

Model

EOC-Switch08

Ethernet Port

1*1000 Base-X

1*10/100/1000 Base-T

8*10/100 Base-T(PoE power supply)

PoE Power Consumption

Port1,5≤60W, Port2,3,4,6,7,8≤30W, Total≤120W

PoE Protocol

IEEE802.3af, IEEE802.3at, Hi-PoE

Switching Capacity

8.8Gbps

Packet Forwarding Rate

4.17Mpps

Packet Buffer Memory

2.75Mb

MAC Table Size

8K

Flow Control

Enable by default

Application Humidity

10%~90%

Power

DC48~57V power adapter

Lightning Protection

Common Mode 4KV

Differential Mode 2KV

Working Temperature

﹣30°C~65°C

Weight

0.59kg

Dimension(W×D×H)

150mm×100mm×42mm

Transmission Performance:

Cable (m)

Bandwidth (Mbps)

PoE Load Capacity (W)

Hi-PoE Load Capacity (W)

Working Mode

100

100

25.5

53

IEEE/E100

200

100

25.5

33

E100

300

100

19

19

E100

400

10

17

17

E10

500

10

13

13

E10

800

10

7

7

E10

EOC switch power supply voltage 48V

CAT5E/CAT6, max. DC resistance < 10Ω/100m
