(POE-SW505GD) Gen 2 5-Port DC12V PoE Switch for Solar/UPS Battery Applications | LINOVISION
$99.99 USD
Pre-order Request Volume Pricing
Pre-order Request Volume Pricing
x
Request for Volume Pricing Form
This field is required.
This field is required.
This field is required.
This field is required.
Please enter an integer greater than 0.
This field is required.
This field is required.
This field is required.
SKU: POE-SW505GD
Thank you for inquiring. Our sales team will be in touch with you shortly!
Submission failed. Please try again.
-

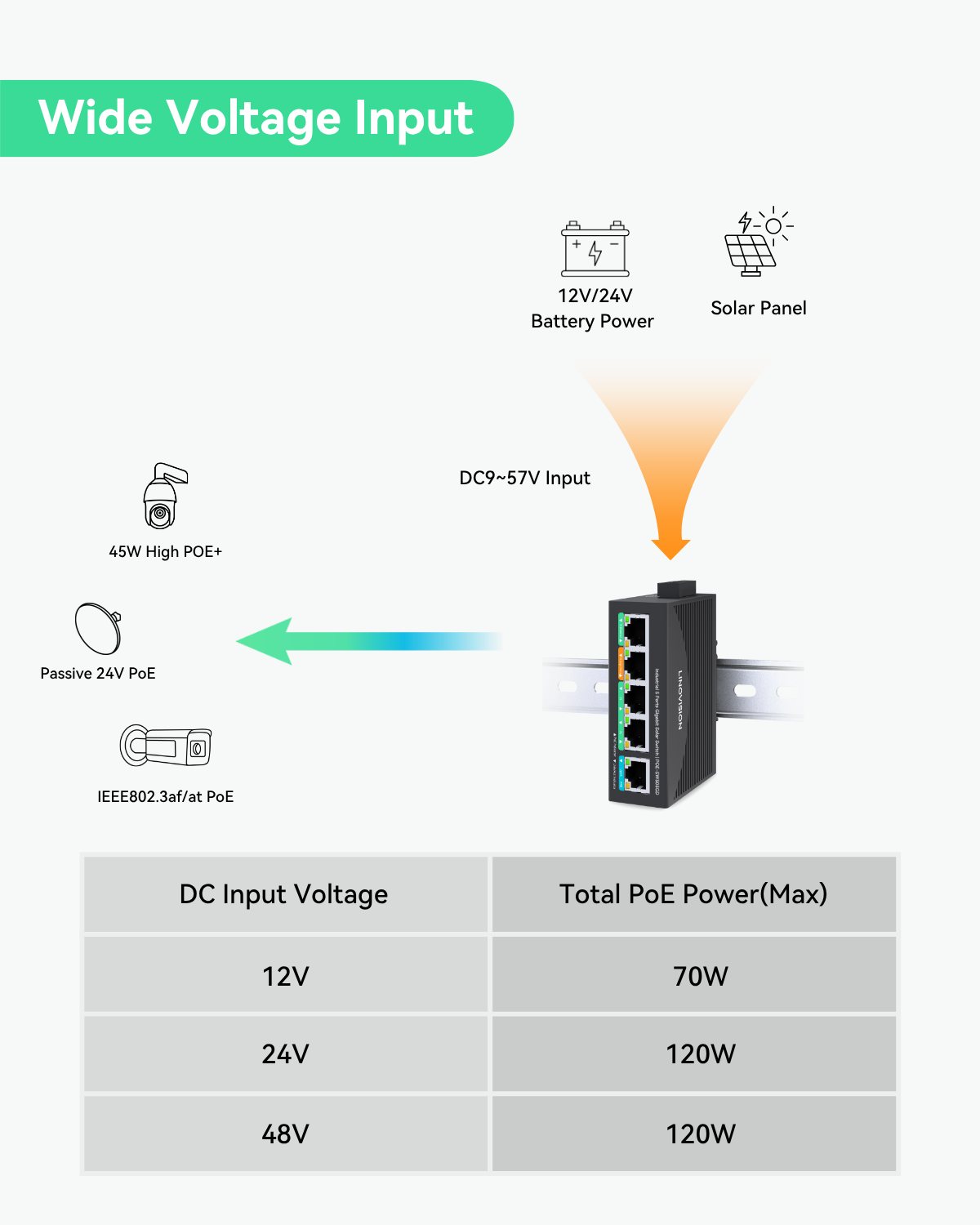

5-Port DC12V PoE Switch - Featuring built-in voltage booster, it accepts a wide 9~57V DC input, and provides 4 Gigabit PoE outputs plus 1 Gigabit Uplink. Total PoE budget 120W (DC24V/DC48V input) or 70W (DC12V input).

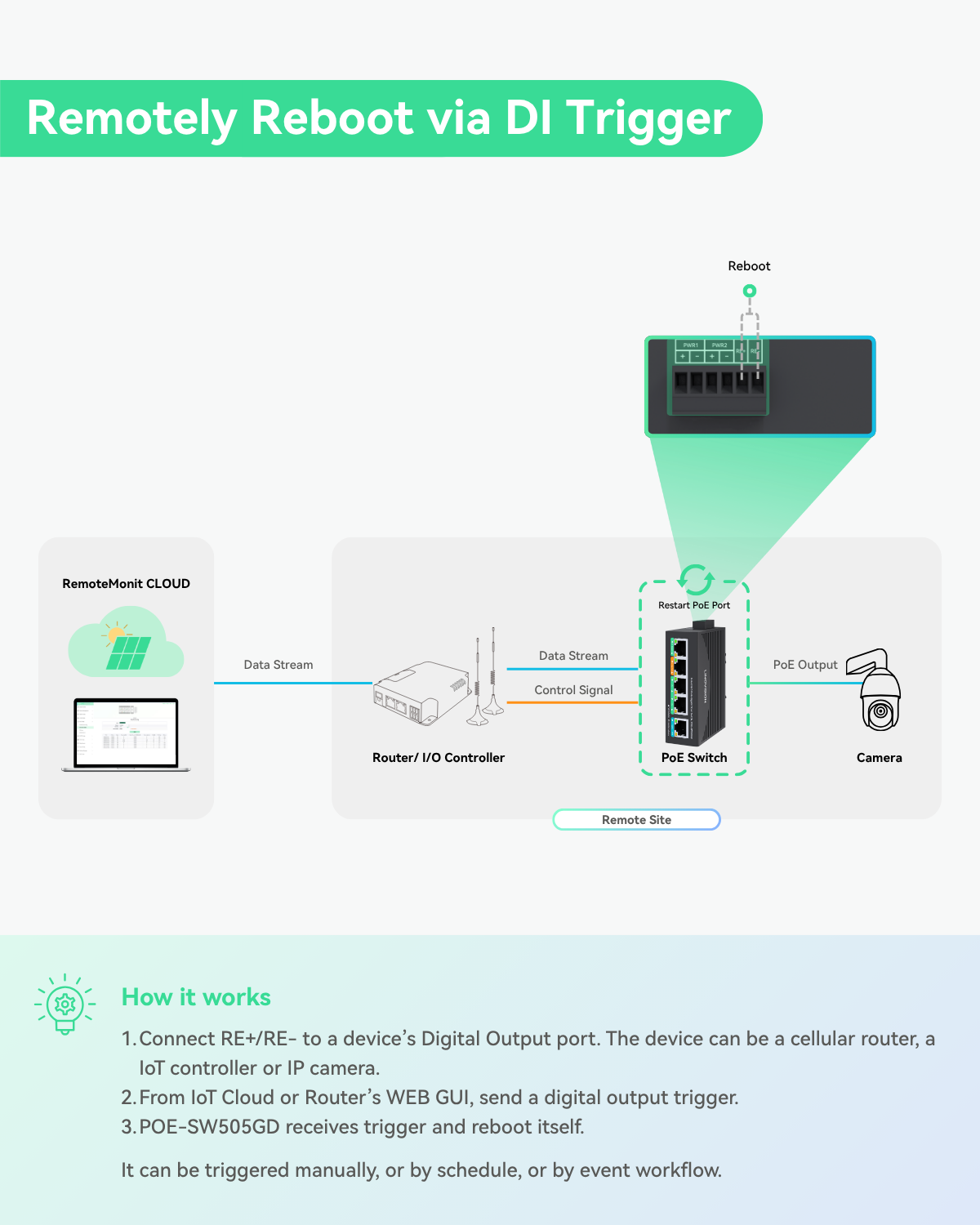

- Remotely Reboot - Unique feature introduced in Gen 2. Built-in reboot relay that can be triggered by digital signal from a cellular router, camera, or other external controller. It enables remote power-cycle resets or manual restarts of all connected PoE devices, making it especially useful for unattended installations.

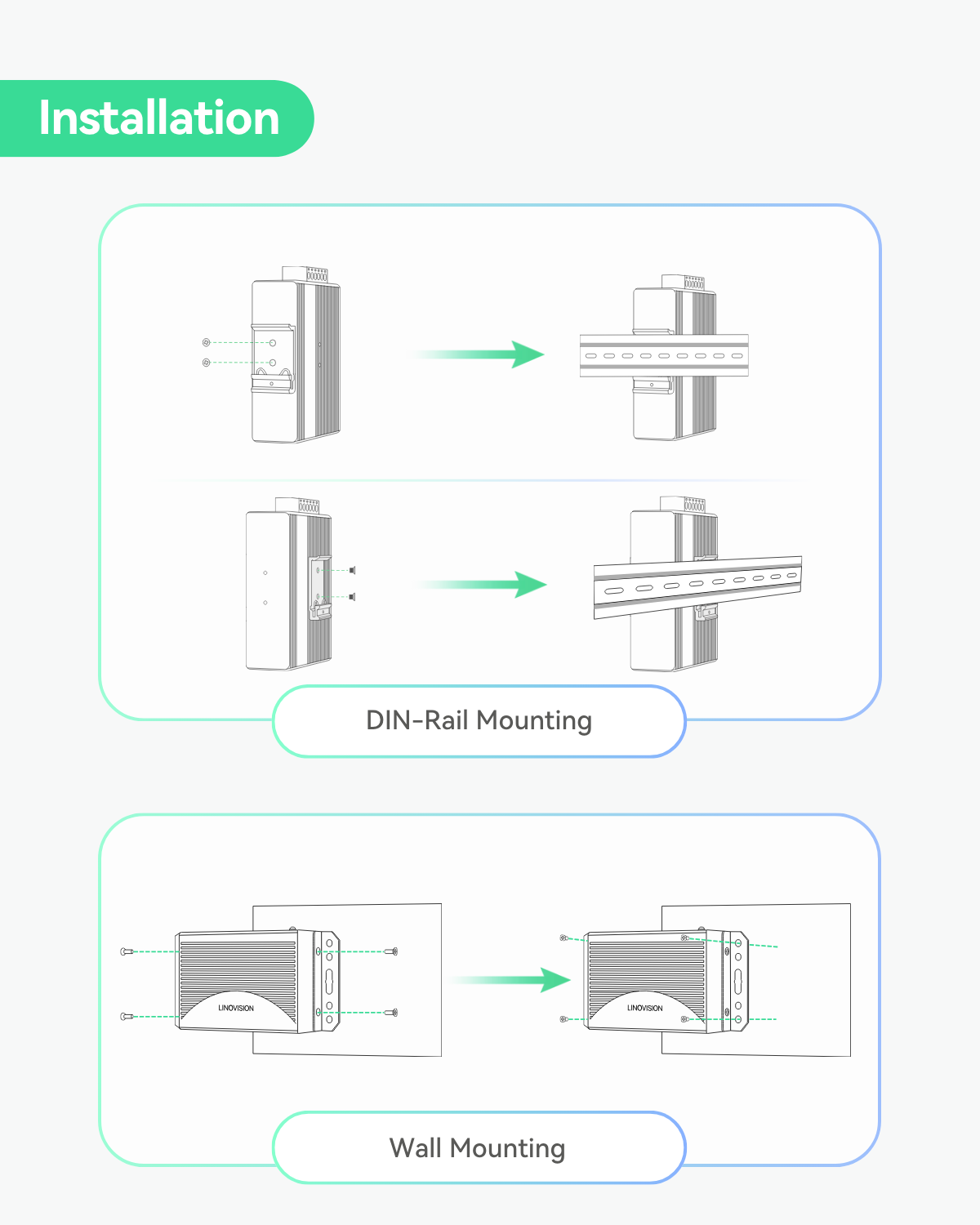

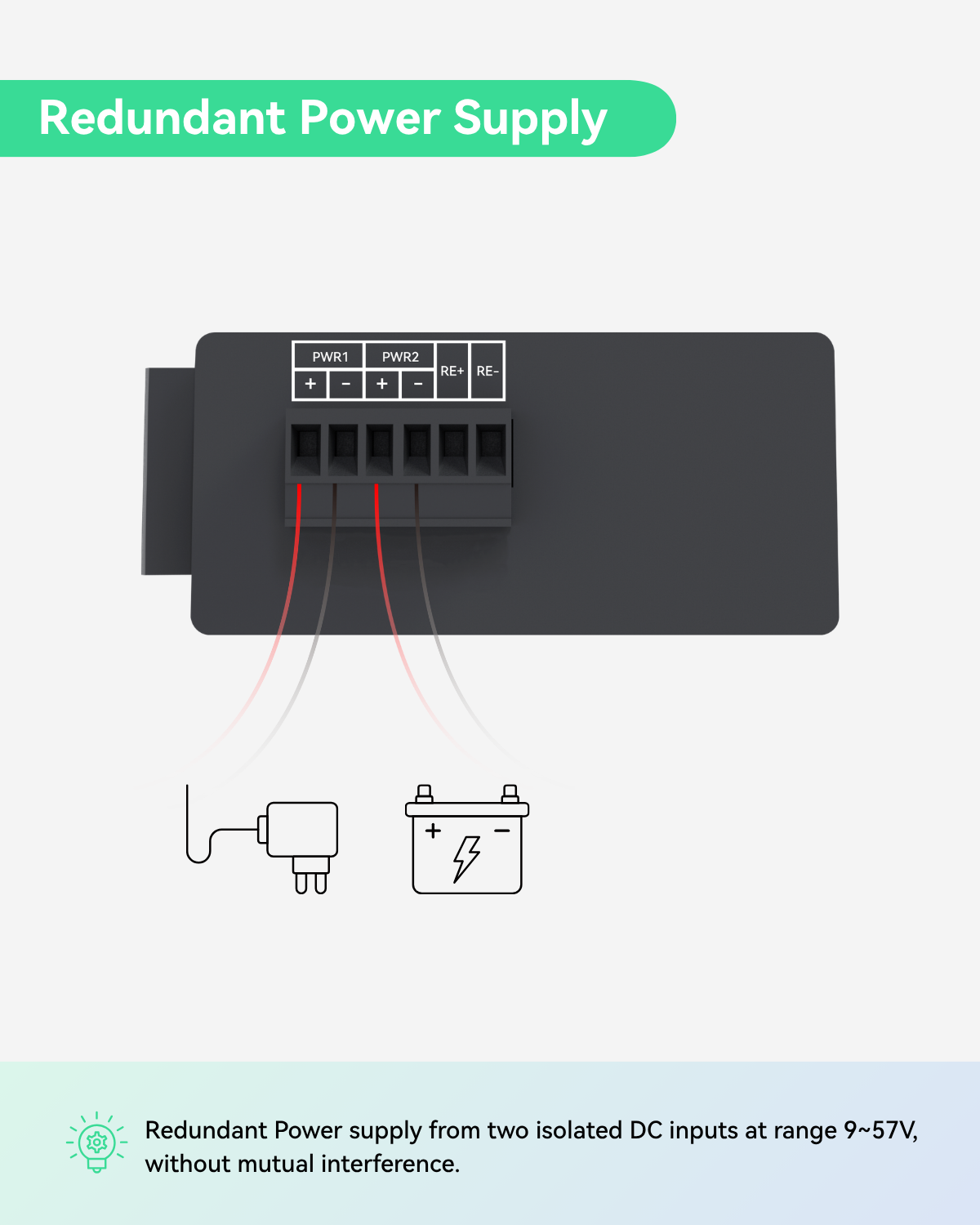

- Industrial Design - Redundant 2ch isolated power inputs; Compact IP40 rugged metal enclosure; Wide working temperature -4 ℉ to 158 ℉ (-20°C to 70°C); Support DIN-Rail & Wall Mount.

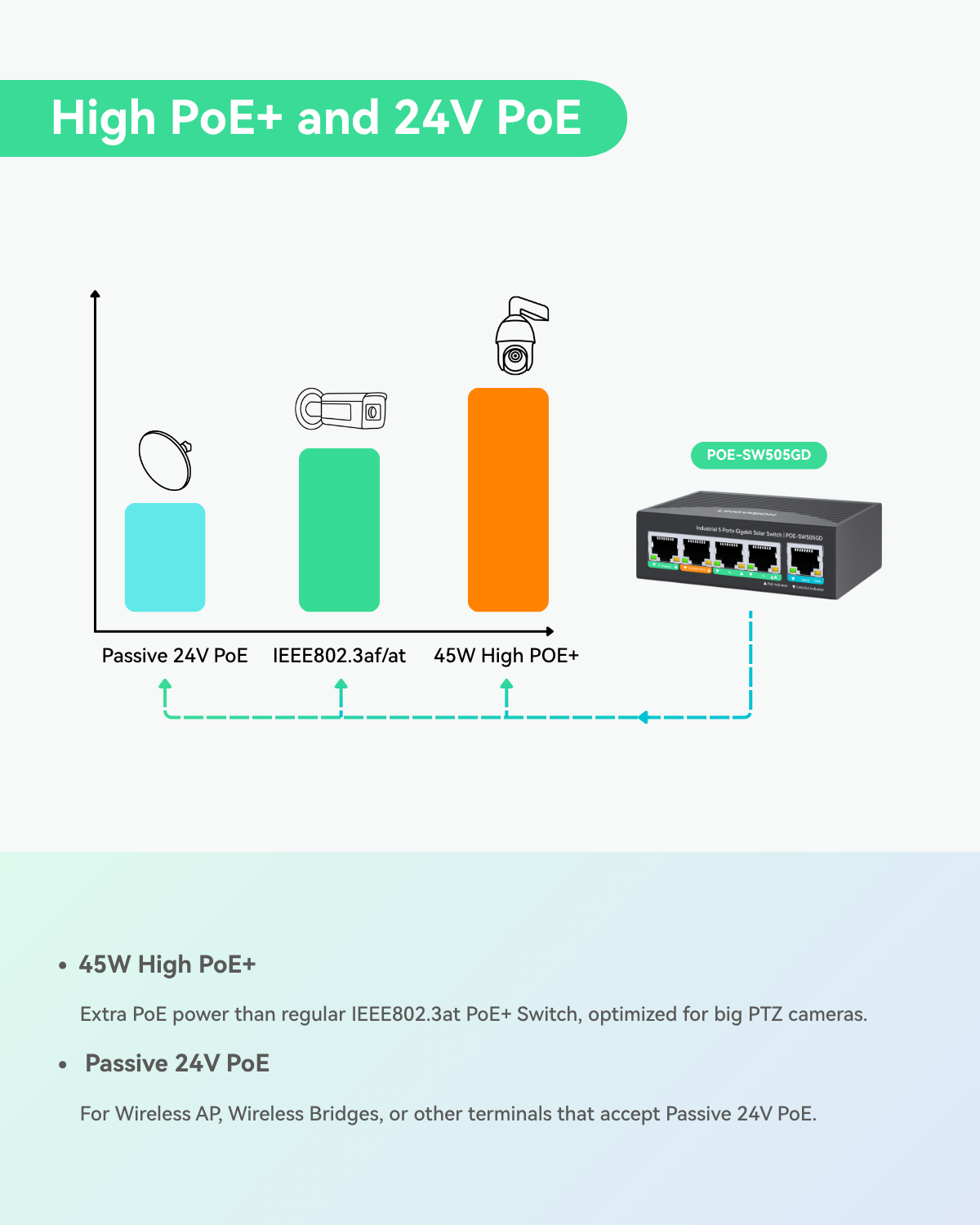

- Optimized for Solar/UPS Camera System - Works directly with DC 12V or DC 24V Solar or UPS battery system, provides 1* passive PoE for wireless bridge, 1* 45W high PoE for big PTZ camera, and 2* IEEE802.3at PoE for regular cameras or IoT terminals.
-

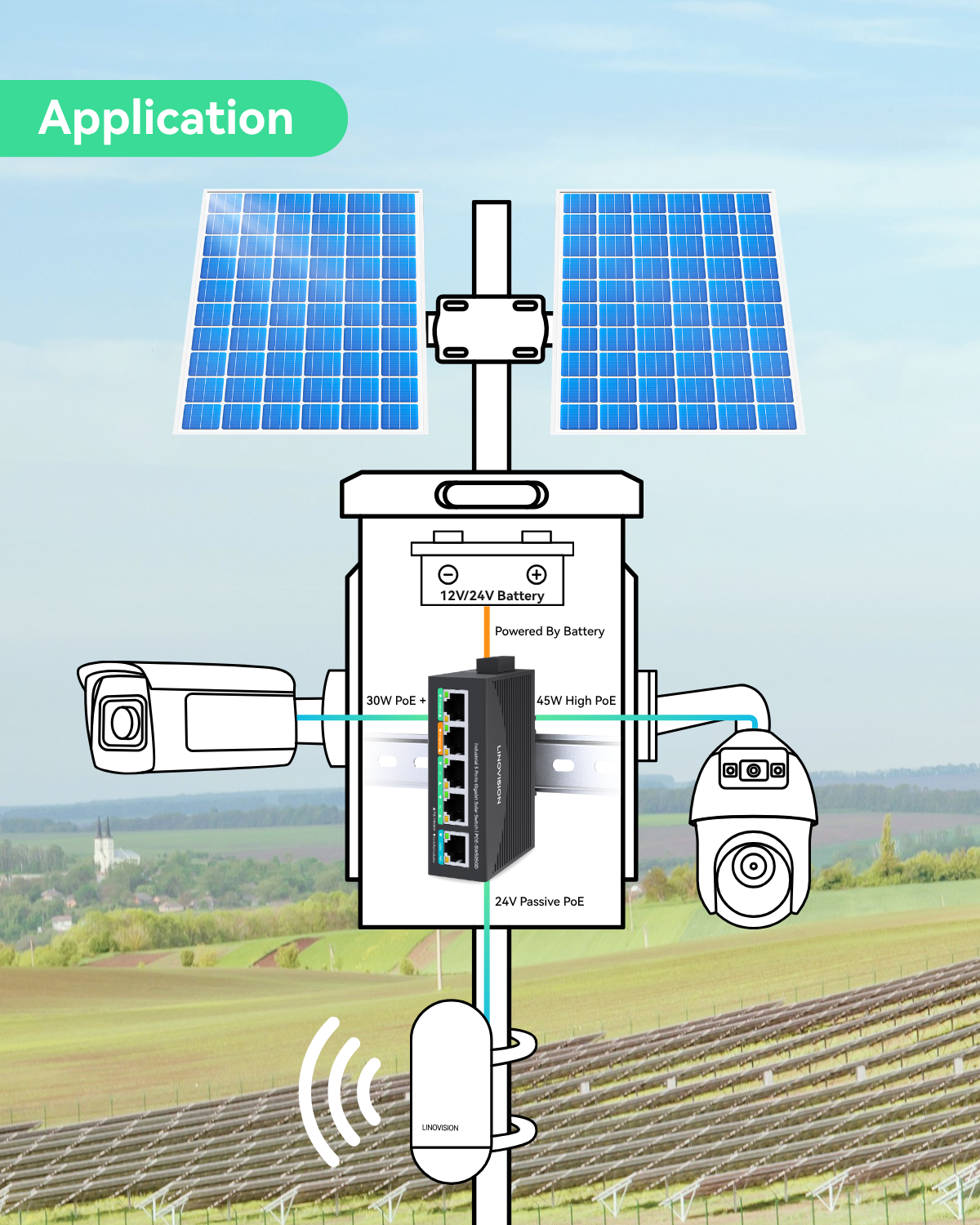

Application - Solar power camera system (DC12V/DC18V/DC36V input), RV/Vehicle/Truck/Bus system (DC12V/24V input), VoIP/Access control/Robotic Systems (DC24V/DC48V input).

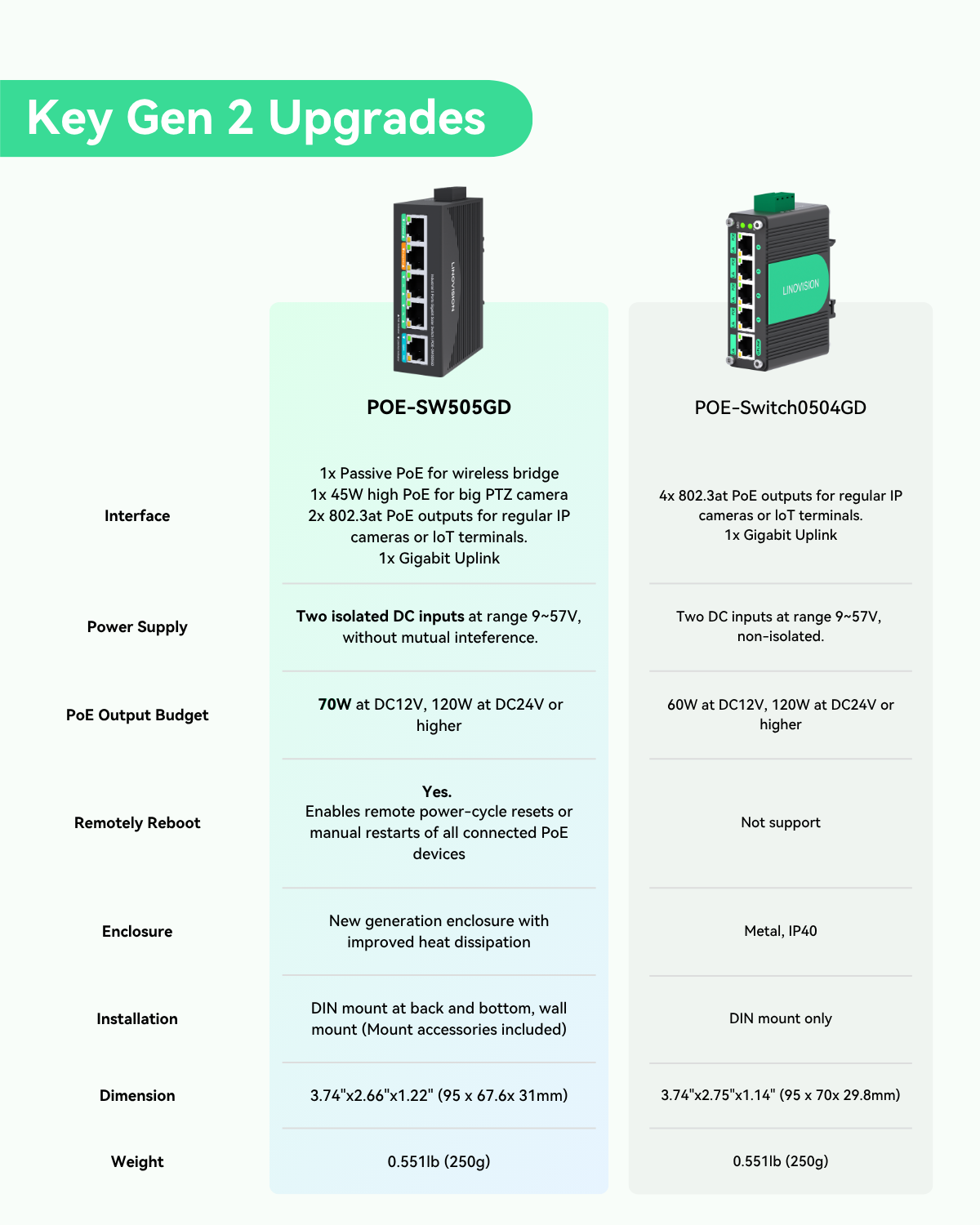

Key Gen 2 Upgrades:
It is a comprehensive upgrade to the POE-Switch0504GD while keeping nearly the same compact dimension.
- Higher power conversation efficiency
- Provide 1ch 24V Passive PoE output for wireless bridge and 1ch 45W High PoE for big PTZ camera
- Built-in reboot relay for remotely restart
- New generation enclosure with improved heat dissipation, support both DIN rail mount and wall mount.
