4K PoE IP Underwater Camera Anti-Corrosion, Max 165ft Depth of Water

$599.00 USD

Cable length

Produc variants

-

+

8MP (3840×2160) resolution @ 20fps, or 4MP (2560*1440) @ 30fps
Wide angle of view, H.FOV 102° and V.FOV 55°
Designed to be used underwater permanently, max. depth of water 165ft (50 meters)
304 stainless steel material and anti-corrosion cable for fresh water and saltwater
White LED illumination with remote On/Off control
H.265/H.264 video compression, dramatically reducing storage and bandwidth
Intuitive WEB GUI, compatible with Chrome/ Safari/IE/Edge, no plug-in is required
Compliant with ONVIF, providing API/SDK for 3rd party system integration
Power supply: PoE
Remote access video from PC WEB client, Client software, and Mobile App (free of license)
The default cable length is 33ft (10 meters), but you are free to use your own Ethernet cable to extend it

SKU: IPC608UW-10

Datasheet Manual Video

SAME DAY SHIPPING (BEFORE 2PM CST)

30 DAY RETURNS

24/7 US LOCAL + GLOBAL TECH SUPPORT

This Item

4K PoE IP Underwater Camera Anti-Corrosion, Max 165ft Depth of Water

$599.00 USD

-

+

Frequently Bought With

4-Port Full Gigabit PoE Switch with 1 GE & SFP Uplink, Support POE Extend up to 820ft, Total POE Budget 65W

$45.00 USD

-

+

8CH NVR with 8 PoE ports, 4K resolution, max 2 HDDs, 1U case

$289.00 USD

-

+

WD Purple 2TB Surveillance Hard Disk Drive - 5400 RPM Class SATA 6 Gb/s 64MB Cache 3.5 Inch

$75.00 USD

-

+

Total Bundle

This Item

x1

+

This Item

4K PoE IP Underwater Camera Anti-Corrosion, Max 165ft Depth of Water

$599.00 USD

-

+

Frequently Bought With

4-Port Full Gigabit PoE Switch with 1 GE & SFP Uplink, Support POE Extend up to 820ft, Total POE Budget 65W

$45.00 USD

-

+

8CH NVR with 8 PoE ports, 4K resolution, max 2 HDDs, 1U case

$289.00 USD

-

+

WD Purple 2TB Surveillance Hard Disk Drive - 5400 RPM Class SATA 6 Gb/s 64MB Cache 3.5 Inch

$75.00 USD

-

+

OverView Key Specification Q&A Resources Reviews

Outstanding Features

Other Features

8MP (3840×2160) resolution @ 20fps, or 4MP (2560*1440) @ 30fps
Wide angle of view, H.FOV 102° and V.FOV 55°
Designed to be used underwater permanently, max. depth of water 50 meters (165ft)
304 stainless steel material and anti-corrosion cable for fresh water and salt water
White LED illumination with remote On/Off control
H.265/H.264 video compression, dramatically reducing storage and bandwidth
Intuitive WEB GUI, compatible to Chrome/ Safari/IE/Edge, no plug-in is required
Suport ROI (Region of Interest) encoding, get more details on important areas
Compliant to ONVIF, providing API/SDK for 3rd party system integration
Power supply: PoE
Remote access video from PC WEB client, Client software and Mobile App (free of license)
The default cable length is 33ft (10 meters), but you are free to use your own Ethernet cable to extend it

4K Ultra HD Resolution

Get superior image quality at 3840x2160 Ultra HD resolution, while maintaining efficient bandwidth with the most advanced H.265+ encoding algorithm.

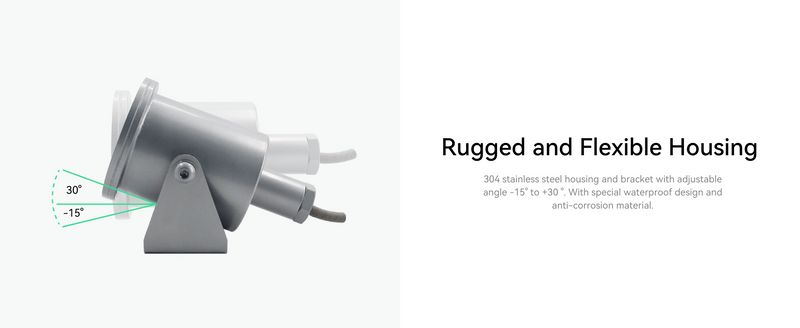

Rugged and Flexible Housing

304 stainless steel housing and bracket with adjustable angle -15° to +30 °. With special waterproof design and anti-corrosion material.

Intuitive WEB GUI

The camera comes with intuitive WEB GUI. And it is compatible to popular web browsers, like Chrome/Safari/IE/Edge, no plug-in or ActiveX is required.

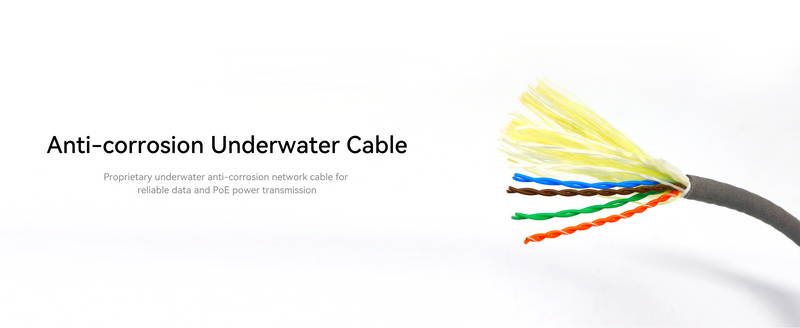

Proprietary Underwater Cable

The camera adopts proprietary underwater anti-corrosion network cable for reliable data and POE power transmission.

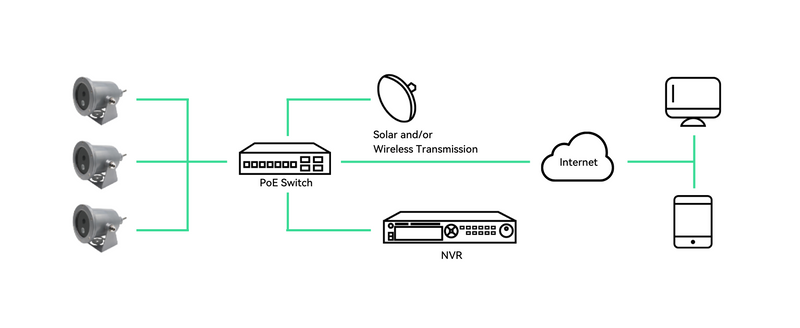

System Diagram

Linovision provides a complete system for multi-sites remote monitoring, for example, NVR for local high capacity storage (up to 80TB), wireless transmission, solar power, VMS software for multi-cameras management, and mobile App with cloud access (free of charge).

Key Specification

Sensor	1/2.5", 8.0 megapixel, progressive scan, CMOS
Lens	2.8mm@F2.0
Angle of View (H)	102°
Angle of View (V)	55°
Angle of View (D)	120°
Minimum Illumination	Colour: 0.05 Lux (F2.0, AGC ON)
Digital noise reduction	2D/3D DNR
Compatible Integration	ONVIF(Profile S, Profile T), API
Network	10/100M Base-TX Ethernet
Power	PoE(802.3af, class 3), 7.5W
Dimensions (L × W × H)	100×90×100mm (3.9”×3.5”×3.9”)
Net Weight	1.75kg (3.85lb)

Q&A

Q.Does this camera work with an NVR recorder?

A.

Yes. The camera works with NVR recorders via ONVIF protocol, so the camera video will be stored in NVR’s hard drives. We also provide Ultra Package that includes NVR and hard drive.

Q.Can I view this camera from VLC player?

A.

Yes, our cameras provide RTSP stream and it works with VLC player.

Q.Will this camera work with Avigilon video surveillance software?

A.

Yes, our cameras support ONVIF protocol and it can be working with 3rd party video management software.

Q.How to power on this camera?

A.

All of our underwater cameras are POE IP cameras. They are powered by PoE (Power over Ethernet) injector/switch

Q.How to remote monitor video from this underwater camera?

A.

Our underwater cameras support remote live view and playback. Here are several options: Via WEB browser from a remote computer. It is compatible to popular web browers, like Chrome/Safari/IE/Edge, no plug-in or ActiveX is required. Via Client software from Windows OS or Mac OS computer. The Client software can be downloaded from our website and free of charge Via Mobile App from iOS or Android smart phone.

Q.Does this camera support live streaming or broadcasting?

A.

Yes, when working with live streaming device. The camera provides RTSP stream and can be connected to live streaming device and then stream on YouTube or Facebook.

Q.Does this camera support Wi-Fi network?

A.

No, the camera does not support Wi-Fi connection.

Q.How can I deploy this underwater camera in sites without power and wired network?

A.

No worries. Linovision provides professional solar power system and 4G LTE wireless transmission system. For temporary deployment, you can also use our handheld terminal, its built-in battery can supply PoE power to underwater camera temporary.

Q.Can I deploy this camera in salt water aquarium or ocean aquaculture farms?

A.

Yes. Underwater cameras come with 304 stainless steel with anti-corrosion coating. It is no problem to use this camera in salt water, ocean, or oceanside applications.

Q.How to reset the camera if forget the login password of the camera?

A.

Please feel free to contact us or submit a support ticket on our website (https://support.linovision.com), our technicians will assist you step by step to solve the problem.

Q.Does optional infrared come with this camera?

A.

This camera comes with a white light. If you need an infrared light, please let us know when you place the order, and we can customize for you. The general customization time is 5-10 days. If it is used in water, we recommend using white light, the effect is better than infrared light.

Resources

Datasheet(1)

User Manual(1)

IPC608UW Datasheet

IPC608UW User Manual

Great underwater camera

This is a great underwater camera. We've used standard definition cameras in the past for safety cameras for diving events. But WOW! the image clarity of these cameras has blown us away. Great clarity, great low light sensitivity, depth and field of view. The housing is rugged - enough for us to use as diver-held cameras. Set up is straightforward, depending on your workflow and equipment. Technical service (via chat or e-mail) is pretty good too! We are hooked up to a 8 channel NVR for recording raw streams and reviewing their RTSP streams for more detailed video stream interrogation.
