Industrial 8 Ports Full Gigabit PoE Switch with 4 BT90W Ports, Total P

$99.00 USD

Provide 8*100/1,000Mbps High Power PoE ports and 2* 1,000Mbps SFP uplinks
Port 1-4 supports IEEE802.3bt 90W PoE (Power over Ethernet), port 5-8 supports IEEE802.3af/at 30W PoE
Total PoE budget 120W (comes with UL listed 48V 2.5A power adapter); Optional 240W power adapter (NDR-240-48) to support 240W PoE output
Support dual DC redundant power input
Industrial design - DIN rail mount, IP40 fanless metal enclosure
Working Temperature: -40 ℃ ~75 ℃ (-40 ℉ ~ 167 ℉)
Plug and play, No configuration required

Applications

Provide stable PoE power supply for IP cameras, VoIP phones, Wireless AP, etc.
Provide BT90W for high POE power device like PTZ IP camera, PoE lighting, PoE LED, PoE monitor
Reliable PoE switch for PoE extenders and PoE over coax converters
Bundled with a variety of PoE splitters to provide Ethernet data, DC12V, DC24V, PoE 24V, USB-C outputs
Build Long reach PoE power supply system when bundling with PoE extender (up to 200 meters or 656ft), or with EOC-Converter (up to 1,000 meters or 3,300ft)

Related Topics: PoE Extender; Long Reach PoE; BT90W PoE; PoE Splitter

SKU: POE-SW508G

Datasheet Manual Video

SAME DAY SHIPPING (BEFORE 2PM CST)

30 DAY RETURNS

24/7 US LOCAL + GLOBAL TECH SUPPORT

Frequently bought with

Industrial 8 Ports Full Gigabit PoE Switch with 4 BT90W Ports, Total PoE Budget 120W

$99.00 USD

-

+

MEAN WELL NDR-240-48 240W Din-Rail Power Supply

$69.00 USD

-

+

30W PoE Splitter to 100Mbps Ethernet with 2 ports DC12V output Output (2 pack)

$21.99 USD

-

+

BT90W Outdoor PoE Extender, Gigabit PoE Repeater with Two PoE Outputs

$89.00 USD

-

+

The bundle

This Item

x1

+

This item

Industrial 8 Ports Full Gigabit PoE Switch with 4 BT90W Ports, Total PoE Budget 120W

$99.00 USD

-

+

Frequently bought with

MEAN WELL NDR-240-48 240W Din-Rail Power Supply

$69.00 USD

-

+

30W PoE Splitter to 100Mbps Ethernet with 2 ports DC12V output Output (2 pack)

$21.99 USD

-

+

BT90W Outdoor PoE Extender, Gigabit PoE Repeater with Two PoE Outputs

$89.00 USD

-

+

4-Port Full Gigabit PoE Switch with 1 GE & SFP Uplink, Support POE Extend up to 820ft, Total POE Budget 65W

$45.00 USD

60W Gigabit Ultra POE Injector PFT1200 Single Port Hi-POE Midspan 802.3at/af, 10/100/1000Mbps

$45.99 USD

OverView Key Specification Comparison Resources Reviews

LINOVISION Industrial 8-Port Full Gigabit Unmanaged POE Switch

with 2 SFP Uplinks, 4 BT 90W PoE Ports, POE Watchdog, Redundant Power, DIN-Rail POE Switch for PTZ Camera/POE Lighting/ POE Monitor

4 BT90W Ports

The 1~4 ports are BT90W Ports, deliver up to 90W power per port, suitable for high-power POE devices, like POE monitor, POE lighting, PTZ camera, etc. The total POE budget is 120W.

Full Gigabit PoE Switch

Providing 8*10/100/1000Base-T Ethernet PoE ports and 2*1000Base-X SFP Ports.

PoE Watchdog

Realtime monitoring PoE load device's status and will automatically reboot PoE port when the connected device is not active

UL Listed Power Adapter

Default 120W power supply, optional Mean Well 240W Din rail Power Supply (ASIN: B015C9ITSS), the total PoE Budget of PoE Switch can be increased to 240W.

Connetcion Diagram

Package & Installation

Application

Key Specification

Model	POE-SW508G
Hardware Specifications
Ports	810/100/1000BASE-T RJ45 auto-MDI/MDI-X ports 21000Mbps SFP Slot
Connector	Removable 4-pin terminal blockPin 1/2 for Power 1; Pin 3/4 for Power 2
LED Display	Power Indicator: PWR(green). Network Indicator: Link(yellow) SFP: Green
Power requirements	48~56V DC
Installation	DIN-rail kit
Switch Performance	Backplane bandwidth	20Gbps
	Packet forwarding rate	16.86Mpps
	MAC address	4k
	Flow control Back pressure for half duple. IEEE 802.3x pause frame for full duplex
Enclosure	IP40 Metal case
ESD Protection	6KV ESD
Dimension(W × D × H)	50 x110 ×150mm (1.98in x 4.33in x 5.91in)
Weight	1kg
Power over Ethernet (PoE) Specifications
Network standard	IEEE802.3: 10 BASE-T IEEE802.3u 100 BASE-TX IEEE802.3ab1000BASE-T IEEE802.3x Flow Control IEEE802.3af Power over Ethernet IEEE802.3at Power over Ethernet IEEE802.3bt Power over Ethernet IEEE802.3az EEE
PoE Standard	IEEE 802.3af Power over Ethernet/PSE IEEE 802.3at Power over Ethernet Plus/PSE IEEE 802.3bt Power over Ethernet Plus+/PSE (1-4 Port)
PoE Supply Type	12/45(+), 36/78(-) End-span
PoE Power Output	Per Port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af) Per Port 52V DC, 600mA. max. 30 watts (IEEE 802.3at) Per Port 56V DC, 1720mA. max. 90watts (IEEE 802.3bt)
Environment
Environment specification	Operating temperature: -40°C~75°C, operating humidity: 5%~95%
Environment specification	Storage temperature: -40°C~75°C, storage humidity: 5%~95%

Comparison

LINOVISION Industrial POE Switch Selection Guide

	Learn more >	Learn more >	Learn more >		Learn more >	Learn more >
Model	POE-Switch0604	POE-SW308	POE-SW304G	POE-SW508G	POE-SW606GP	POE-Switch1108GP
Input	AC 100-240V DC 52V/1.25A	Single DC Input:AC 100-240V	Single DC Input:AC 100-240V	Dual DC Input:48V-56V DC	Single AC Input:AC 100-240V	Single DC Input:AC 110-240V
Output	48V POE Standard	48V POE Standard	48V POE Standard	48V POE Standard	48V POE Standard	48V POE Passive 24V POE
Uplink Ports	2 *100Mbps Uplink	2 Gigabit SFP	1 Gigabit Uplink+1 Gigabit SFP	2 Gigabit SFP	1 Gigabit Uplink Ports+1 Gigabit SFP	2 Gigabit Uplink+1 Gigabit SFP
POE Ports	4*10/100Mbps PoE ports	8*10/100mbps PoE Ports	4 Gigabit PoE Ports	8 Gigabit PoE Ports	4*100/1000Mbps	2 Gigabit + 6*10/100Mbps Port
POE++ Ports	/	/	/	4 * BT 90W Ports	/	2 * BT 60W Ports
POE budget	65W	100W	65W	120W	56W	120W
L2/L3 Management	/	/	/	/	/	/
PoE Port Control	/	/	/	/	/	/
Waterproof	✘	✘	✘	✘	✔	✔

Resources

Datasheet(1)

User Manual(1)

POE-SW508G Datasheet

POE-SW508G User Manual

la qualité

reste a testé la qualité

Having 802.3bt and at compatibility issue with POE extender

This POE switch is more have industrial use than normal household in mind, it is designed with using railed power supply. Although it includes a power supply adapter for regular power outlet, there are power connectors exposed outside the case. Something to be aware of.

It has for POE ports that supply higher wattage output of 802.3bt standard and four POE for 802.3 af/at. There are two SFP ports for none POE uplinks. While SFP ports may be popular in data centers, I don't see the logic to have both none POE ports are SFP instead on at least one using regular RJ45 port. It forces user using the SFP to buy an additional SFP to RJ45 adapter in order to connect this switch with their network.

While I have no issue using this switch directly with POE devices using up to 24W of power, I ran into problem using a 802.3bt compatible POE extender, and the main reason for me to get this switch in the first place.

While I don't have any POE devices require high wattage output of bt, I do have a number of POE devices that require up to 24W at peak use. While normal bt switches can support these devices without problem, I was hoping to simplify the cable routing by using one cable to a cluster of devices and then use an extender to connect them. This requires a switch and an extender to support the bt high wattage output between them in order to have sufficient for the extender to support those devices.

Well, as it turns out, my plan did not work. Not only the extender was not able to support multiple devices, but it was also not even able to support one 24W POE device, in other words the pair could not even handle 820.3at power level. Granted, this compatibility issue may not be this switch's fault. It could be the extender is the problem, so I move the extender to an 802.3at switch to test, and it was able to power up the 24W device without problem. It is clear that when 802.3 hand shack between this switch and the extender did not workout, this switch falls back not to 802.3at but to the even lower power output of 802.3af.

At the end, I was not able to archive what I has hoped with this switch.

Easy to use Switch that works well in a high end home network

In the age of IoT devices, my wireless network was getting crowded. I wanted to move some heavier traffic devices off of the wireless network by using a wired connection. I needed a network switch for my entertainment center and ordered this one. This network switch is more than what I need for my entertainment center. It has eight 1 gig ports that allowed me to wire my devices directly into my network. I wired my Shield, Nintendo Switch, and projector into the switch and was measuring 800+ MBs from each connection. The connections are more stable than they were when I was using WiFi. With Steam Link, I was able to reduce the input latency to less than 1 ms and the video latency to 12ms. This made games that I had trouble playing before playable.

I love that this has a DIN mount connection on the back. This makes it very easy to attach to my wall. The mount slides on and remains in place due to the spring clips. Additionally, this has a couple of features I've yet to take advantage of including the fact that it has 2 SFP ports. For my home use, this works exceptionally well.

Great Product!!

We have dozens of these and are very dependable.

Great value for money

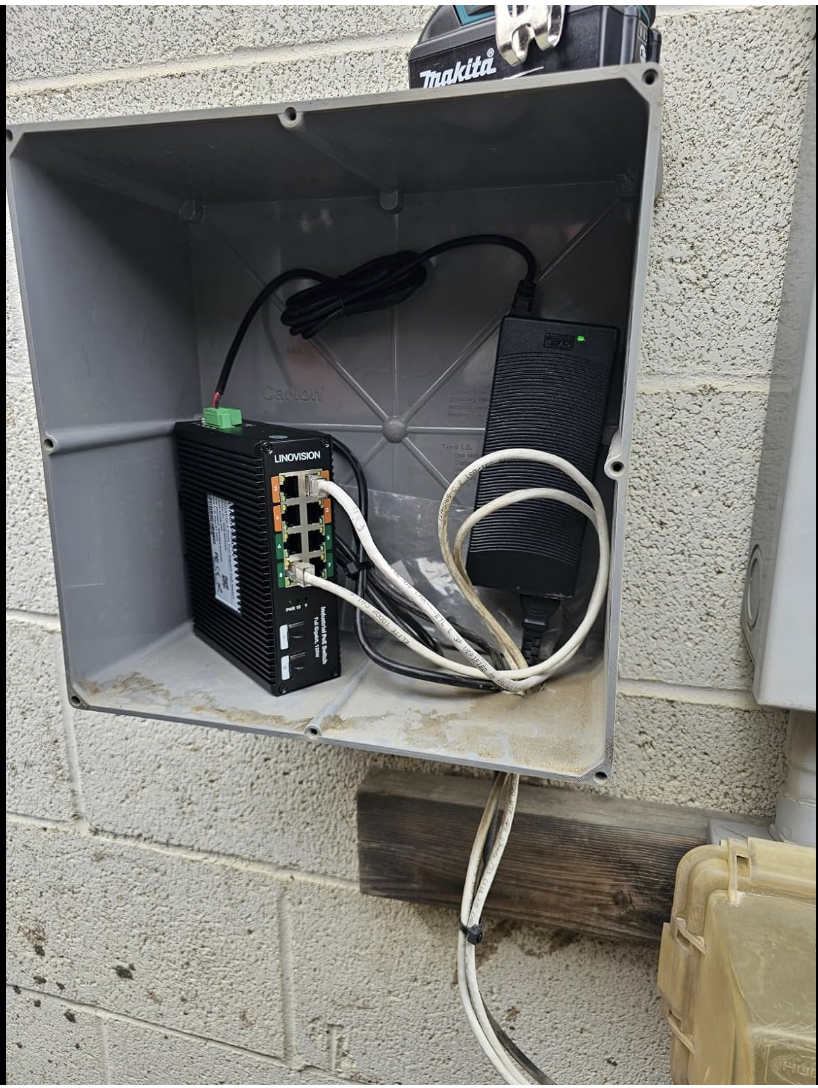

Installed this in my garage where the temperature varies throughout the year. So far has done great with temperatures in the upper 20s and the humidity in my garage. SFP option a plus. I’m connecting this switch to switch located indoors using LC to LC fiber and the SFP. Running 4 PoE cameras with IR lights with no issues (9-14 watt power draw each) .
