Mini Industrial 4G LTE Router with Low Power Consumption and GPS/RS232

$199.00 USD

INDUSTRIAL 4G LTE ROUTER - Unlocked 3G/4G LTE CAT4 router; Powered by DC5-24V or USB Type-C. Designed for harsh environment.

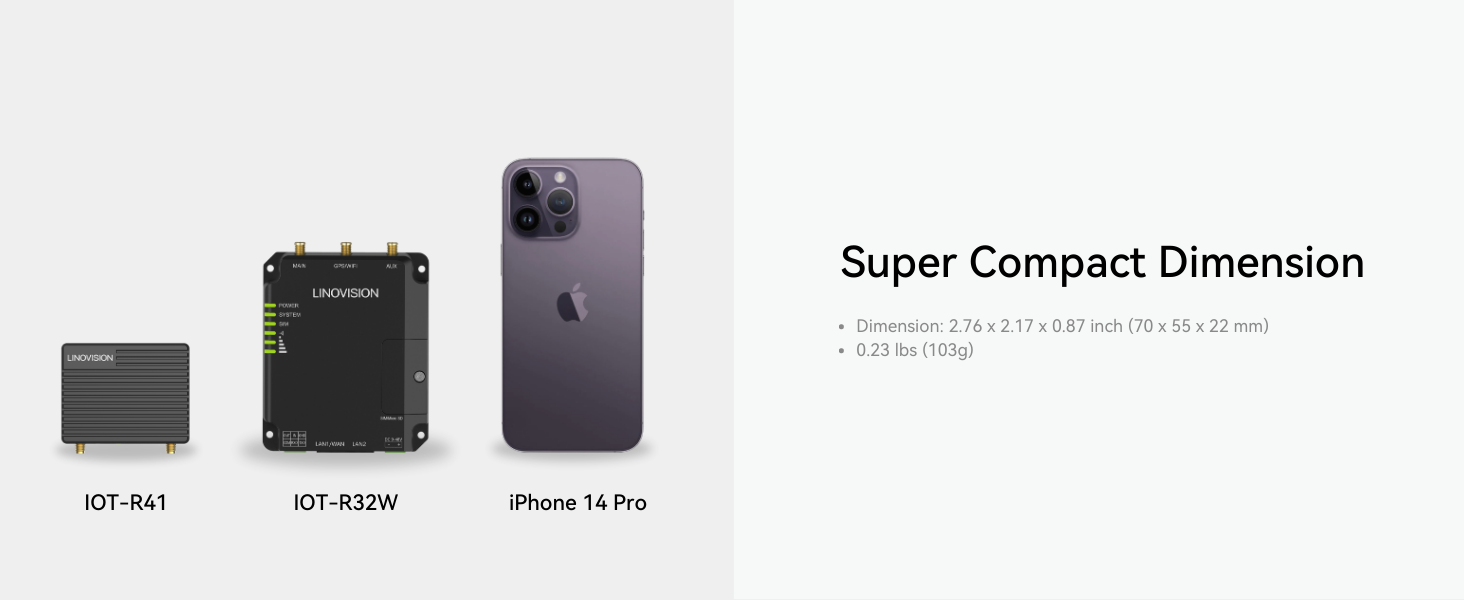

SUPER COMPACT CELLULAR ROUTER - Palm-sized dimension (70x55x22 mm), suitable for suiting small embedded scenarios.

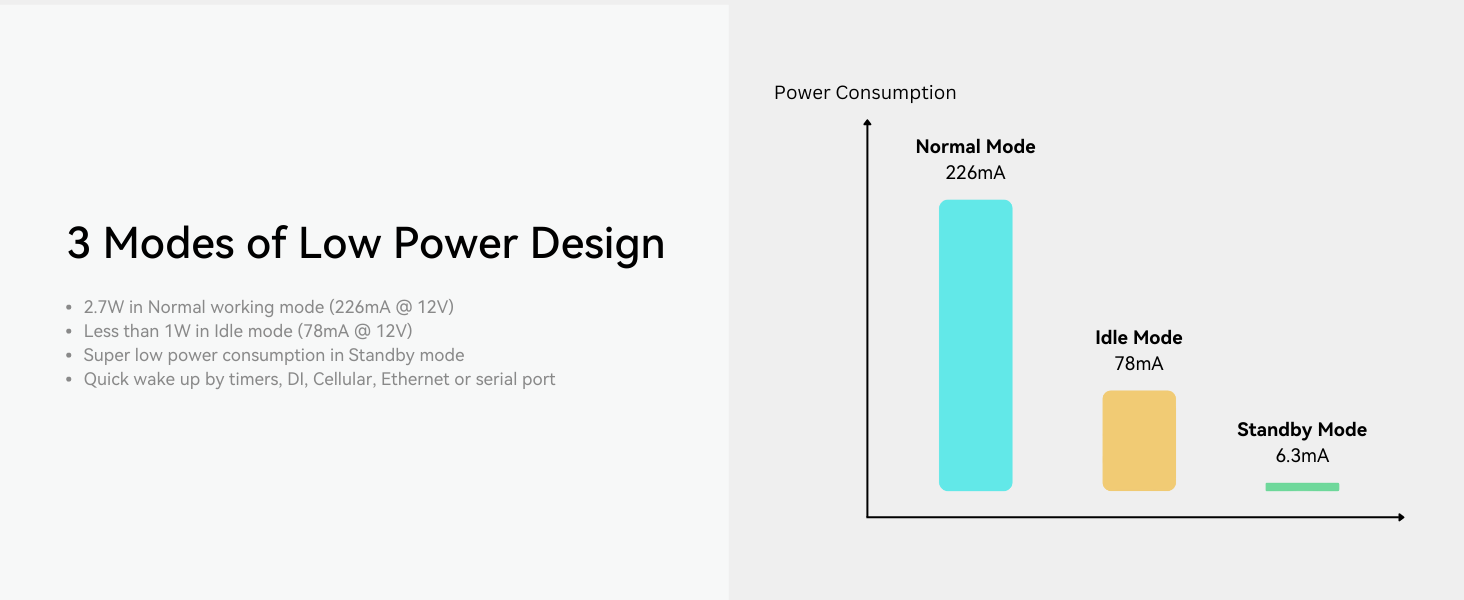

LOW POWER CONSUMPTION - Optimized for battery or solar powered applications. Smart power saving modes(Normal, Idle, Standby). Typical 226mA in DC12 voltage and less than 1 Watt in Idle Mode.
USB DONGLE MODE - Plug-n-add 4G LTE connection for laptop or PC via USB Type-C port.
BUILT-IN GPS AND GNSS - GPS and GNSS (Galileo, Glonass and Beidou) are included. Capability of real-time location tracking of remote assets.
RICH INTERFACES - Offer 1x10/100Mbps LAN, 1xRS232/485, 1xDI, 1xDO, 1xUSB(Type-C).

Application

Perfect for suiting small embedded scenarios, such as vending machine, vehicles, robots with solar battery, etc.
Applied in low power consumption scenario based on three power saving modes.

This item is currently on backorder but you can still purchase it now and we'll ship as soon as more become available.

SKU: IOT-R41(US)

Datasheet Manual Video

SAME DAY SHIPPING (BEFORE 2PM CST)

30 DAY RETURNS

24/7 US LOCAL + GLOBAL TECH SUPPORT

OverView Key Specification Comparison Resources Reviews

Outstanding Features

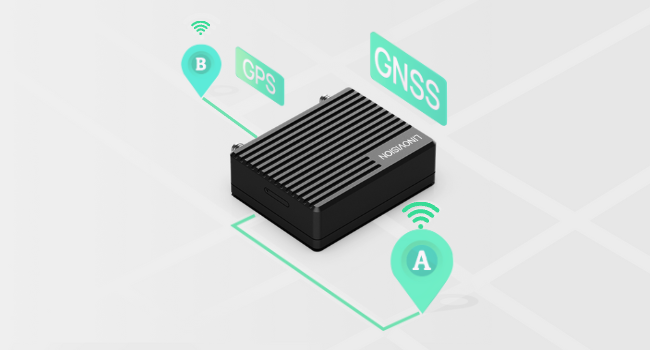

GPS and GNSS

Built-in GPS and Global Navigation Satellite System (Galileo,Glonass, and Beidou)
Real-time location tracking of remote assets
Availability of network clock updates for accurate time-stamp usage
*GPS function requires matching with antenna accessories to achieve

USB Dongle Mode

Plug-n-Add 4G LTE connectivity to your laptop (USB 2.0 Port)
Charging by USB 5V (Type C connector)

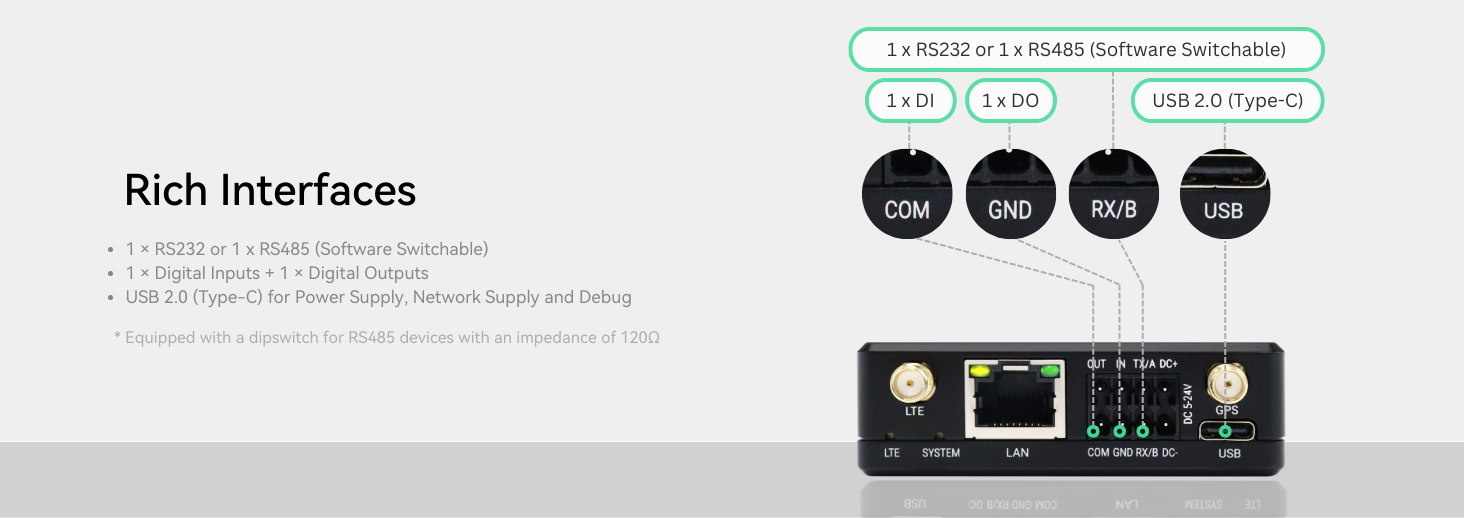

Rich Interfaces for Intelligent Building and Process Automation Controllers

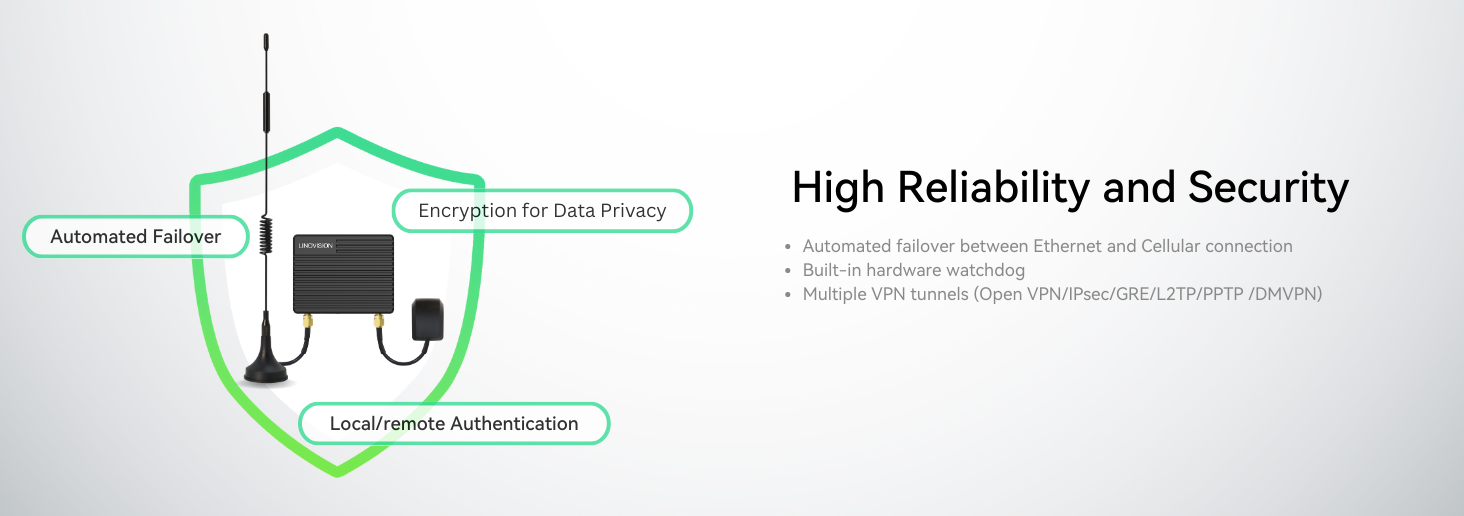

High Reliability and Security

Industrial Grade Design for Harsh Environment

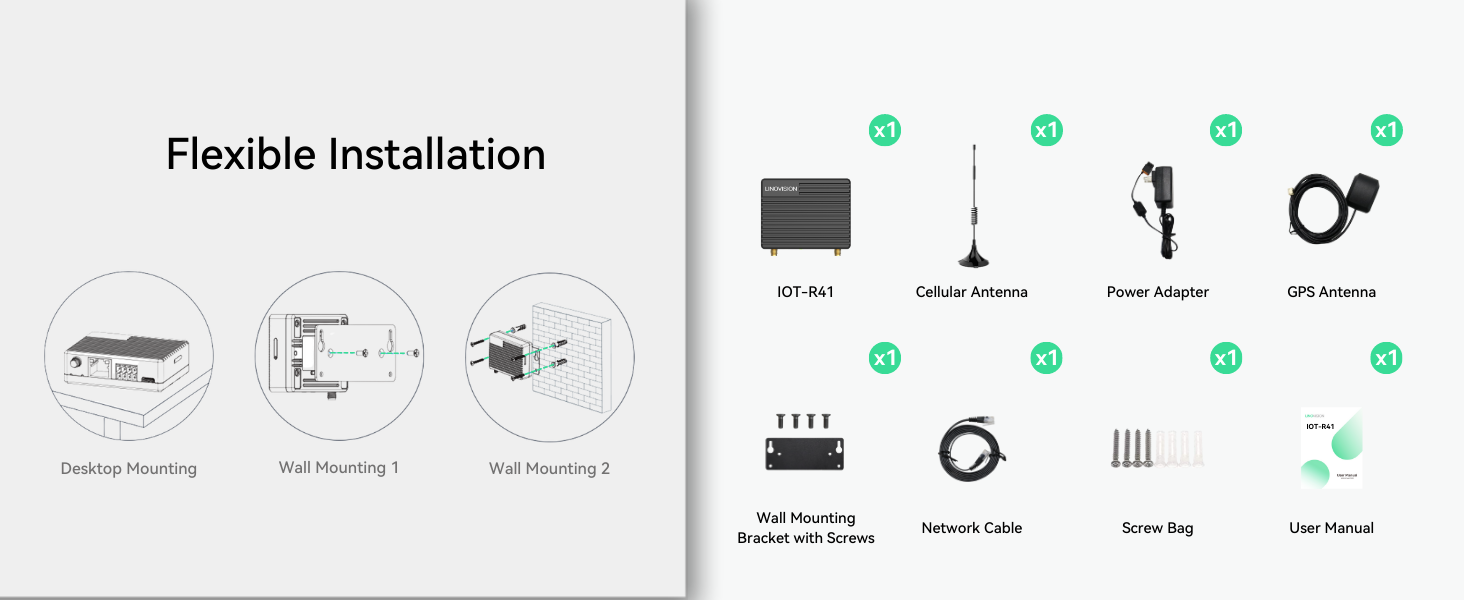

Installation & Package

Key Specification

Hardware System	CPU	ARM Cortex-A7, 528 MHz
Hardware System	Memory	128 MB DDR3 RAM and 128 MB Flash
Cellular Interface	Network	4G LTE (CAT 4)/WCDMA/GSM
	Antenna Connector	1 × 50 Ω SMA Connector (Center PIN: SMA Female)
	SIM Slot	1（Nano SIM-4FF）
	Frequency(US)	LTE-FDD :B2/B4/B5/B12/B13/B25/B26 WCDMA: B2/B4/B5
Ethernet Interface	Numbers	1 × 10/100 Mbps LAN Port
Ethernet Interface	Mode	Full or Half Duplex (Auto-Sensing)
GNSS	Antenna Connector	1 × 50 Ω SMA Connector (Center PIN: SMA Female)
GNSS	Technology	GPS/GLONASS/Beidou/Galileo/QZSS
Serial Interface	Number	1 × RS232 or 1 x RS485 (Software Switchable)
	Connector	3.5mm Terminal Block
	Terminal Resistor	1 × 120 Ω Resister Switch (for RS485)
	Baud Rate	300bps to 230400bps
DI/DO	Numbers	1 × DI (dry contact) + 1 × DO (wet contact), Galvanic Isolation
	Connector	3.5mm Terminal Block
	Maximum V/A	0.3A@30VDC (DO)
Others	Reset Button	1 × RESET
	USB	1 × USB 2.0 (Type-C) for Power Supply, Network Supply and Debug
	LED Indicators	1 × SYSTEM，1 × SIM
	Built-in	Watchdog, Timer
Software	Network Protocols	IPv4/IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QOS, SNTP, Telnet, SSH, etc.
	VPN	DMVPN, IPsec, OpenVPN, PPTP, L2TP, GRE
	Security	SPI Firewalls, Access Control (ACL), DMZ, Port Mapping, MAC Binding, DoS&DDoS Protection, Filtering(IP&Domain)
	Management	Web, CLI, SMS, On-demand dial up, SNMP v1/v2/v3, DeviceHub, VPN
	AAA	Radius, Tacacs+, LDAP, Local Authentication
	Multilevel Authority	Multiple Levels of User Authority
	Serial Port	Transparent(TCP Client/Server, UDP), Modbus, Master/Slave, Modbus Gateway (Modbus RTU to Modbus TCP)
Power Supply and Consumption	Power Connector	2-pin 3.5 mm Terminal Block
	Power Input	1. 5-24 VDC, with Surge-Protection and Reverse Polarity Protection 2. 5V/1A by USB Type-C Port
	Power Consumption	Idle: 78mA@12V Data link: 226mA (peak)@12V Standby mode: 6.3 mA@12V
Physical Characteristics	Ingress Protection	IP30
	Housing & Color	Metal, Black
	Weight	103g
	Dimension	70 x 55 x 22 mm (2.76 x 2.17 x 0.87 in)
	Installation	Desktop, Wall Mounting
Environmental	Operating Temperature	-40°C to +60°C (-40°F to +140°F)
	Storage Temperature	-40°C to +85°C (-40°F to +185°F)
	Ethernet Isolation	1.5 kV RMS
	Relative Humidity	0% to 95% (Non-condensing)

Comparison

LINOVISION Cellular Routers Selection Guide

	Learn more >	Learn more >		Learn more >	Learn more >
Model	IOT-R51W	IOT-R32W	IOT-R41	IOT-R75W	IOT-CPE5G
Cellular Network	4G LTE Cat4			5G & 4G LTE Cat16
Max. Link Speed	Up to 150Mbps downlink and 50Mbps uplink			Up to 2500Mbps downlink and 350Mbps uplink
Compatible carriers	AT&T, T-Mobile, Verizon	AT&T, T-Mobile, Verizon	AT&T, T-Mobile	AT&T, T-Mobile	AT&T, T-Mobile
4G LTE Bands (US version)	B1/B2/B3/B4/B5/B7/B8/ B9/B12/B13/B17/B18/ B19/B20/B25/B26/B28/B66	B2/B4/B5/B12/B13/ B14/B66/B71	B2/B4/B5/B12/B13/ B25/B26	B1/B3/B5/B7/B8/ B20/B28/B32	B2/B4/B5/B7/B12/B13 /B14/B17/B25/B26/ B29/B30/B66/B71
SIM Card Slot	One SIM + eSIM	TWO SIM	One SIM	Two SIM	One SIM
Data Plan	vSIM Data Plan, global coverage without roaming	Depends on SIM carriers
WiFi	2.4G WiFi	2.4G WiFI	N/A	Dual Bands WiFi	Dual Bands WiFi 6
Ethernet Ports	One	Two	One	Five	Two
RS485 & MQTT	Yes	Yes	Yes	N/A	N/A
Dimension	3.943.070.87 in	4.253.541.02 in	2.762.170.87 in	5.314.651.77 in	4.134.338.58 in
Main Applications	Connectivity for security cameras,sensors and IoT devices; High speed internet on the go; Global data access	Connectivity for security cameras,sensors and IoT devices; High speed internet on the go; Internet failover	Connectivity for security cameras,sensors and IoT devices; Low power consumption	High speed internet on the go; Internet failover	High speed internet on the go; Internet failover; WiFi CPE
