Industrial 16-Port Full Gigabit L3 Managed PoE Switch with 4-Port 10G Uplink SFP+ (POE-SW716GM-10G)

3D Model

x

Industrial 16-Port Full Gigabit L3 Managed PoE Switch with 4-Port 10G Uplink SFP+ (POE-SW716GM-10G)

$649.00 USD
Back Ordering

Request Volume Pricing

x

Request for Volume Pricing Form

Name

This field is required.

E-Mail

This field is required.

Company

This field is required.

Phone

This field is required.

Quantity

Please enter an integer greater than 0.

Your target price

This field is required.

Notes

This field is required.

SKU: POE-SW716GM-10G

Thank you for inquiring. Our sales team will be in touch with you shortly!

Submission failed. Please try again.

Produc variants

-

+

Try to order on Amazon?

INDUSTRIAL L3 MANAGED POE SWITCH - Supports VLAN, QoS, SNMP, PoE Management, L3 ACL, PoE port control, IPV6, etc. It can be managed via WEB, CLI or SNMP.

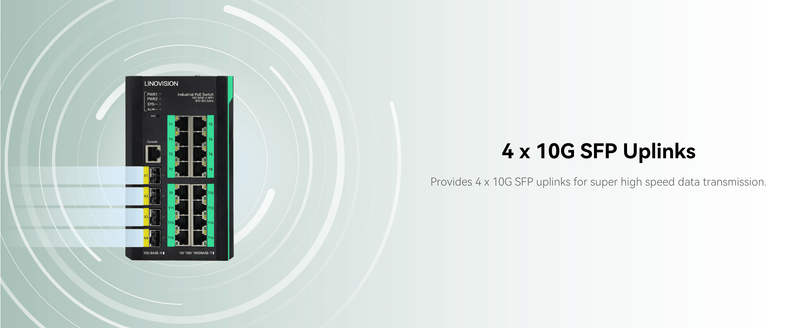

10G UPLINKS - Provides 4 x 10G SFP uplinks for super high speed data transmission.
16 GIGABIT POE PORTS - Provides 16 x 10/100/1000Base-T Ethernet PoE ports, compliant with IEEE802.3af/at, total 360W PoE budget.

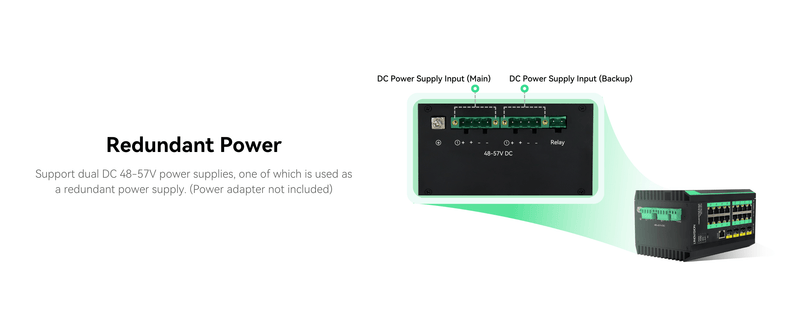

REDUNDANT POWER - Support dual DC 48-57V power supplies, one of which is used as a redundant power supply. (Power adapter not included)
RELAY ALARM - It can trigger alarm event on power failure, connectivity lost, or PoE link off.

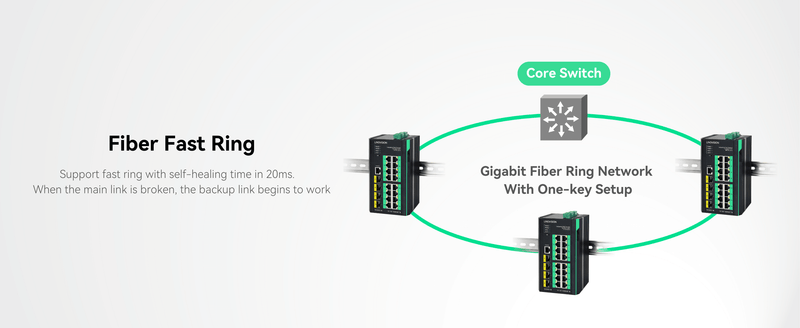

FIBER FAST RING - Support fast ring with self-healing time in 20ms.
INDUSTRIAL DESIGN - IP40 metal shell & fanless design. Support DIN-rail or wall mounted installation. Wide working temperature -40℃ to +75℃. 6KV surge immunity and 8KV ESD protection.

Application

Compliant with high speed data transmission application scenario.
Suitable for harsh environments such as factory, refinery and traffic light control box.

SKU: POE-SW716GM-10G

Datasheet Manual Video

OFFER CUSTOMIZATION SERVICES

Custom Logo & Branding
Port Speeds
Label Customization
PoE Budget

GET STARTED

SAME DAY SHIPPING (BEFORE 2PM CST)

30 DAY RETURNS

24/7 US LOCAL + GLOBAL TECH SUPPORT

x

Request for Customization

Name

This field is required.

E-Mail

This field is required.

Company

This field is required.

Phone

This field is required.

Quantity

Please enter an integer greater than 0.

Customized Content

This field is required.

Select (Please provide a file if possible, as it will help us better assess and offer you a solution.)

SKU: POE-SW716GM-10G

Thank you for inquiring. Our sales team will be in touch with you shortly!

Submission failed. Please try again.

(POE-SW708GM) 8 Ports 360W Full Gigabit Managed PoE Switch, 4 BT 90W PoE Ports

$379.00 USD

(POE-SW708GM-DC12V) Industrial 8 Ports Full Gigabit Managed POE Switch with DC12~57V Input

$399.00 USD

16CH PoE IP Security Camera System with (16) 4K Dome Cameras, 4TB HDD

$1,989.99 USD

OverView Key Specification Comparison Resources Reviews

LINOVISION Industrial 16-Port Full Gigabit L3 Managed POE Switch with (4) 10G SFP Uplinks, Layer 3 Management

Total PoE Budget 360W, Support Redundant Power Input, Fiber Fast Ring and Relay Alarm

Outstanding Features

Industrial Design

Package & Installation

Key Specification

Model	POE-SW716GM-10G
Ethernet Ports
Downlink Ports	16*10/100/1000 Base-T PoE RJ-45(Auto- MDI/MDI-X)
Uplink Ports	4*1000/10G Base-X SFP
Console Port	1*RJ-45 to RS-232 console port (115200,8,N,1)
PoE
PoE Standard	IEEE 802 .3af/at ( PSE )
PoE Power Supply Type	End-span
PoE Pin Assignment	1/2(+)，3/6(- )
PoE Power Output	46~55V DC
PoE Power	30W max for each port, 360W max
Switch Property
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad, IEEE 802.1D, IEEE 802.1x
Power Supply
Input Voltage	Power 1 (Main): 48~57V DC, Power 2 (Backup): 48~57V DC
Power Consumption	380W (Including PoE)
Reliability
Protection Level	IP40
Operating Temperature	-40℉~167℉ (-40℃~75℃)
Storage Temperature	-40℉~185℉ (-40℃~85℃)
Operating Humidity	0~95% (Non-condensation)
Physical Parameter
Led Indicators	PWR1: Main Power Supply Indicator
	PWR2: Redundant Power Supply Indicator
	SYS: System Working Indicator
	ALM: Alarm Indicator
Init Button	Long press ＞5s to initialise the system
Dimensions (WDH)	6.4"x4.3"x3.7" (16311095.6mm)
Gross Weight	4.43lb (2.01kg)
Net Weight	3.81lb (1.73kg)
Material	Aluminum
Installation	DIN-rail or wall mounted

Comparison

LINOVISION Managed POE Switch Selection Guide

	Learn more >	Learn more >	Learn more >	Learn more >	Learn more >		Learn more >
Model	POE-SWR308G	POE-SWR608G	POE-SWR308G25	POE-SW708GM	POE-SW708GM-DC12V	POE-SW716GM-10G	POE-SW328G-BT2000
Power Input	100-240V AC	48-57V DC	100-240V AC	Dual DC 48V~57V DC	Dual DC 12V~57V DC	Dual DC 48V~57V DC	AC 100~127V/200~240V DC 53.5V~57V
Uplink Ports	2*Gigabit SFP	4*Gigabit SFP	1*10G SFP	2 Gigabit SFP	2 Gigabit SFP	4*10G SFP	4 Gigabit SFP
POE Ports	8*Gigabit PoE Ports	8*Gigabit PoE ports	8*2.5G PoE Ports	8 Gigabit PoE Ports	8 Gigabit PoE Ports	16 Gigabit PoE Ports	24 Gigabit PoE Ports
POE++ Ports	/	/	/	4 * BT 90W Ports	1 * BT 90W Port	/	24 * BT 90W Ports
POE Budget	120W	180W	130W	360W	240W (DC48V), 120W (DC24V )	360W	1900W
L2 Management	VLAN, QoS (Limited)	VLAN, QoS, Loop Guard,Fast-Ring (Limited)	VLAN, QoS, Fast-Ring (Limited)	VLAN, QoS, SNMP, STP/RSTP/MSTP，Fast-Ring	VLAN, QoS, SNMP, STP/RSTP/MSTP，Fast-Ring	VLAN, QoS, SNMP，Fast-Ring	VLAN, QoS, SNMP, STP/RSTP/MSTP，Fast-Ring
L3 Management	/	/	/	/	/	IP ACL	/
PoE Port Control	Turn On/Off PoE	Turn On/Off PoE	Turn On/Off PoE	Turn On/Off PoE	Turn On/Off PoE	Turn On/Off PoE	Turn On/Off PoE
Installation Method	Rack-Mount/Desktop	DIN-Rail/Desktop/ Wall-Mount	Desktop	DIN-Rail/Desktop/ Wall-Mount	DIN-Rail/Desktop/ Wall-Mount	DIN-Rail/Desktop/ Wall-Mount	Rack-Mount/Desktop/ Wall-Mount
Working Temperature	32°F~104°F (0°C~40°C)	-4°F~140°F (-20°C~60°C)	32°F~104°F (0°C~40°C)	-40°F~167°F (-40°C~75°C)	-40°F~167°F (-40°C~75°C)	-40°F~167°F (-40°C~75°C)	23℉~113℉ (-5°C~45°C)
