INDUSTRIAL 5G LTE ROUTER- Teltonika RUTM54 supports SA and NSA 5G module, support ultra-high speed (3.4Gbps DL/900Mbps UL) ; built-in LTE CAT19/18, backward compatible with 4G Network (1.6Gbps DL/211Mbps UL). Dual band Wi-Fi 5 compliance with 802.11b/g/n/ac standard, data transmission rates up to 867Mbps.

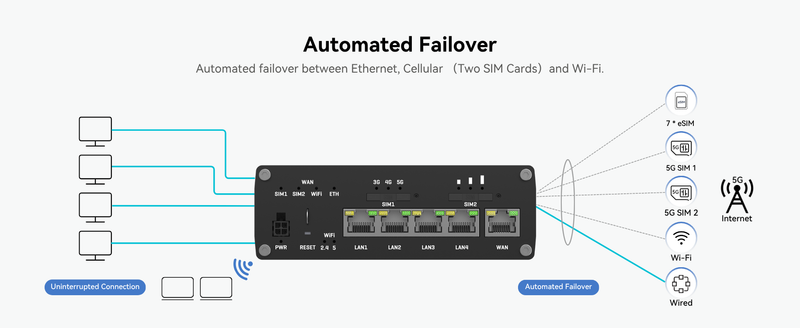

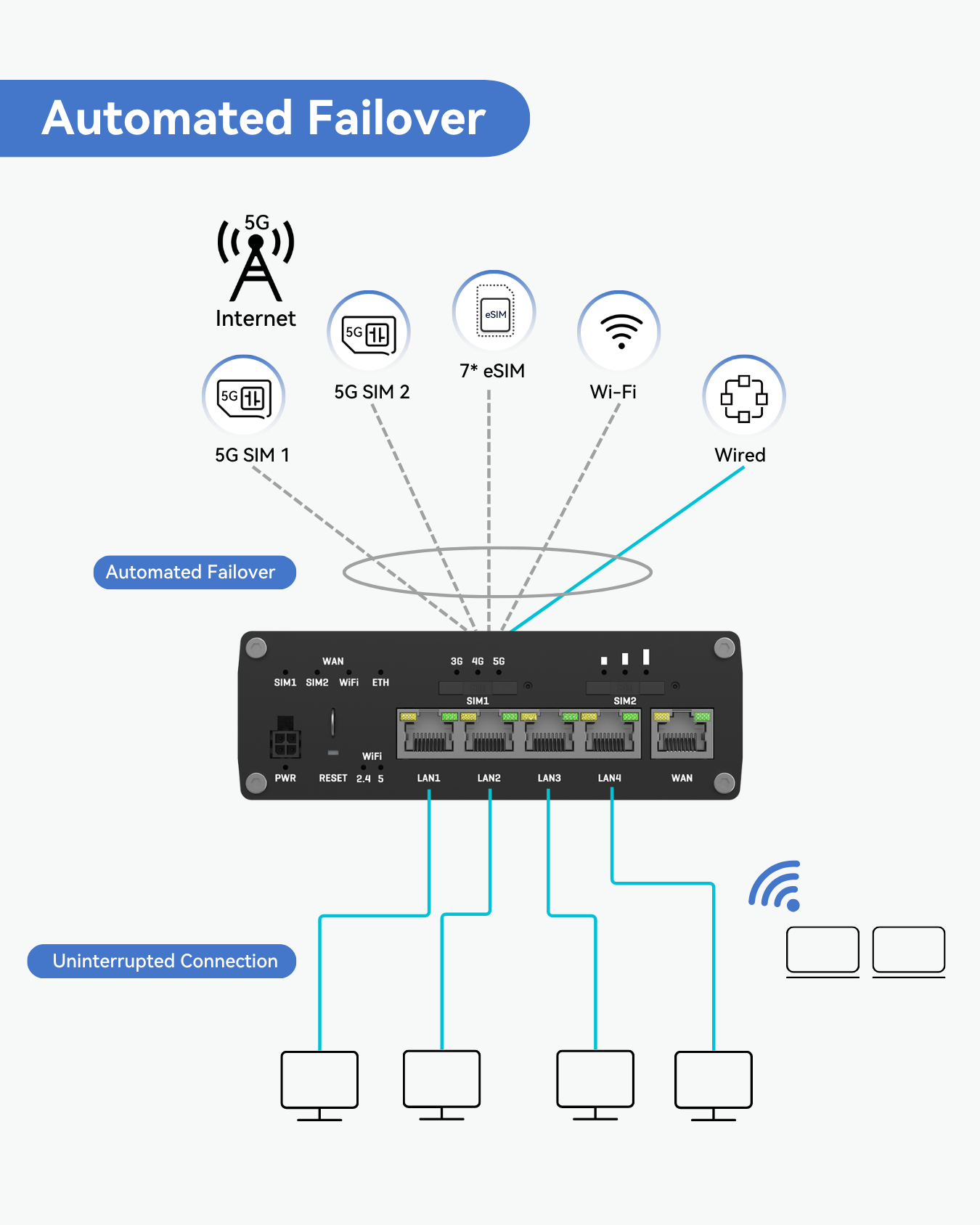

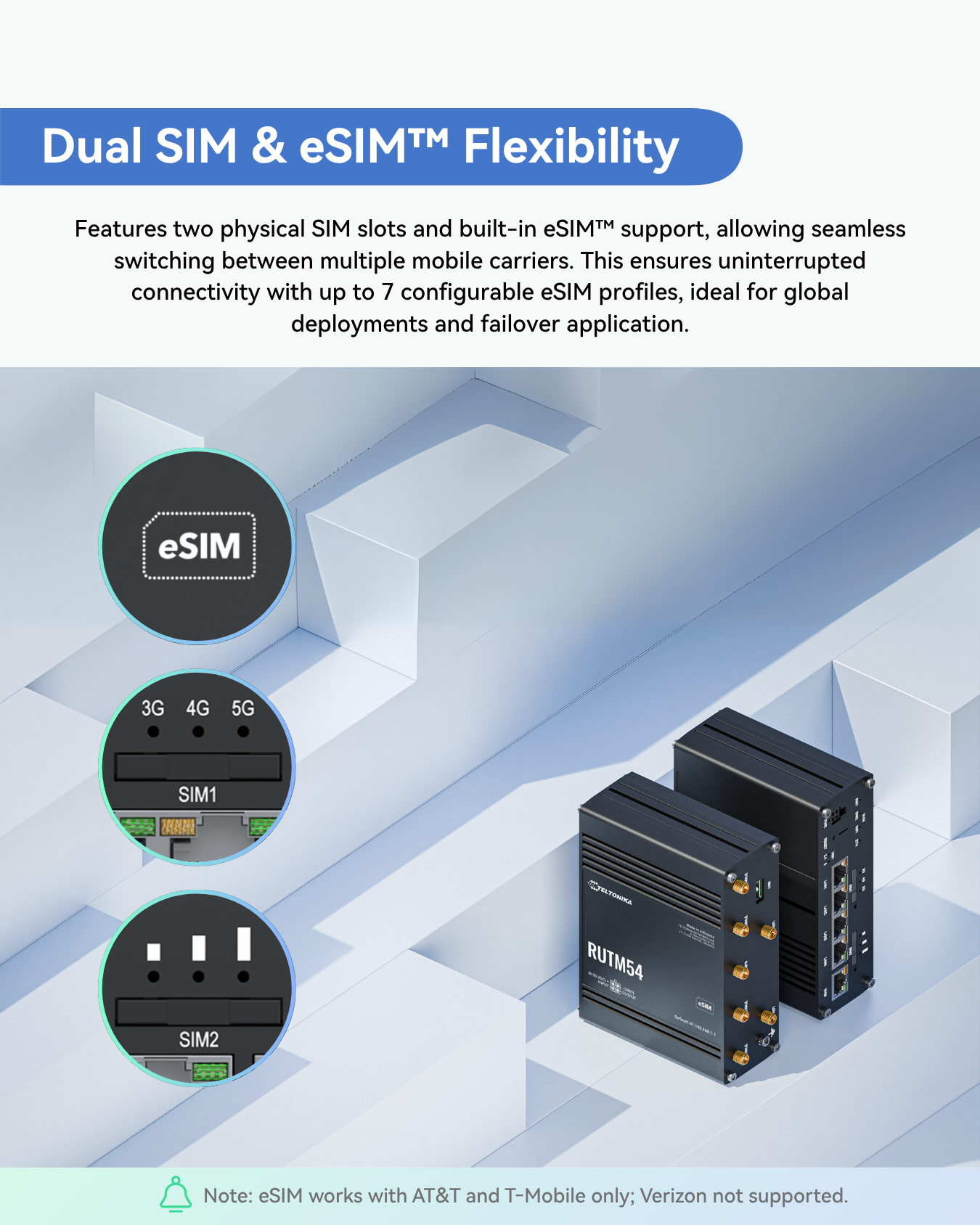

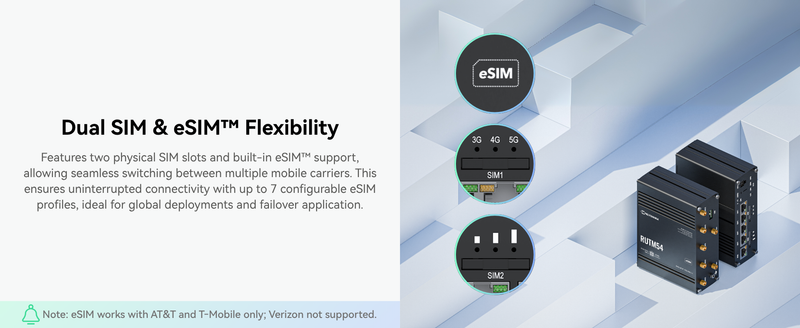

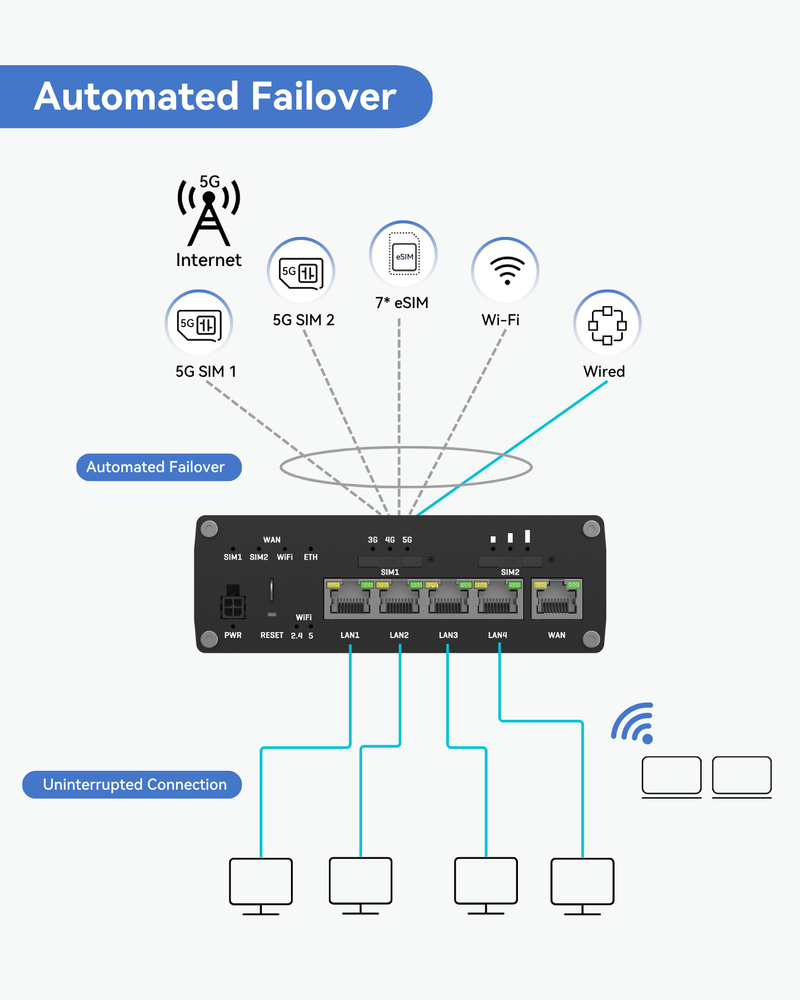

AUTOMATIC FAILOVER- Supports Dual SIM cards and Consumer-type eSIM for a robust and flexible cellular connection. Enables automated failover between Ethernet, Cellular (SIM/eSIM), and Wi-Fi.(The eSIM supports profile download and removal operations, with up to 7 eSIM profiles.Data plans are not included.)
5 GIGABIT ETHERNET PORT - Provide 1x 10/100/1000 Mbps WAN port(configurable as LAN), 4 x 10/100/1000 Mbps LAN ports, 1x DI, 1xDO, 1 x USB A port.
CERTIFIED BY VERIZON, AT&T and T-MOBILE - Supports advanced 5G and LTE Cat 19 networks for compatibility and performance across major U.S. carriers.

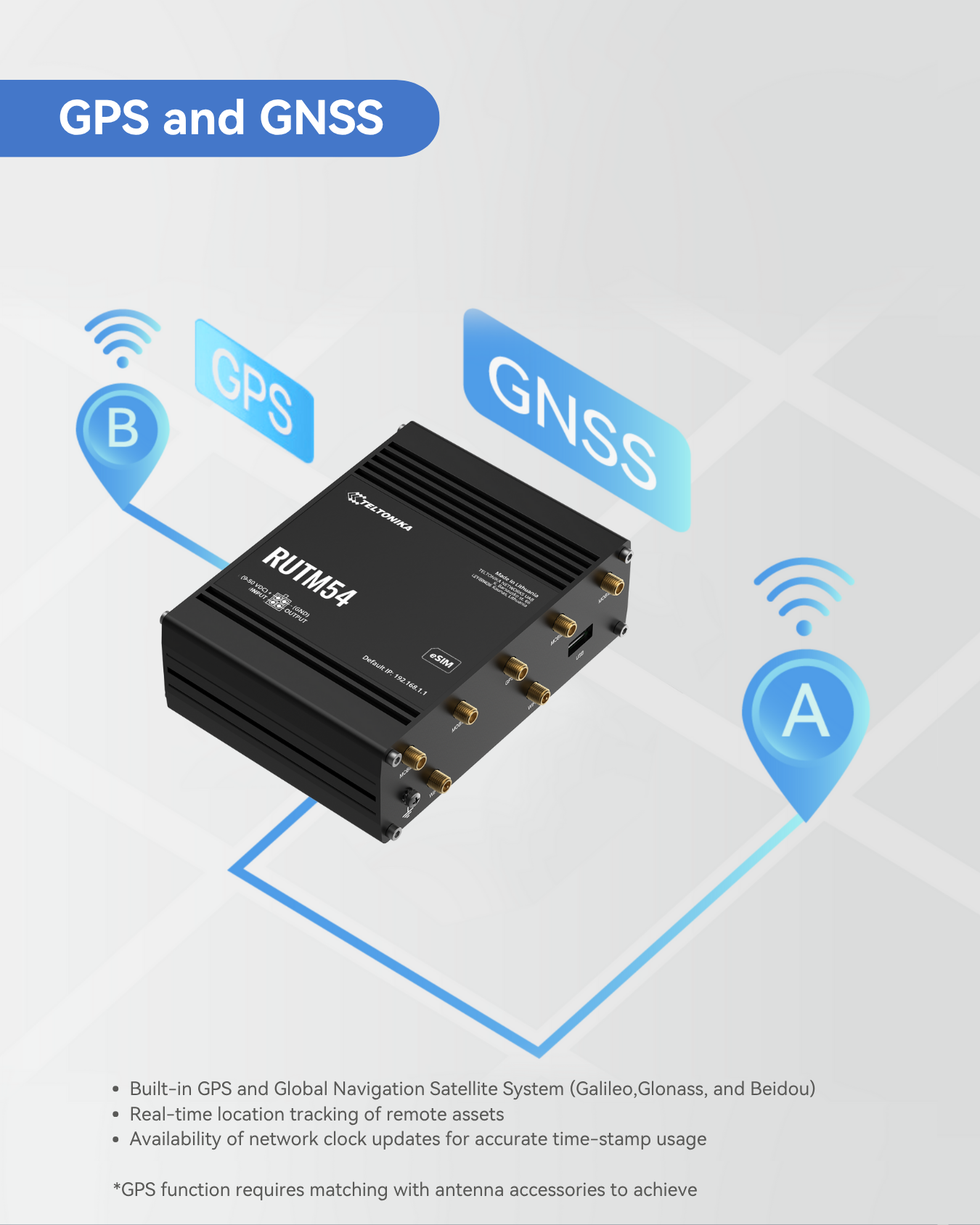

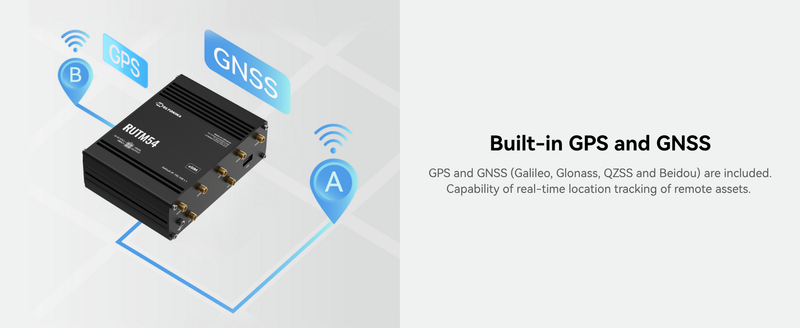

BUILT-IN GPS AND GNSS - GPS and GNSS (Galileo, Glonass, QZSS and Beidou) are included. Capability of real-time location tracking of remote assets.
INDUSTRIAL DESIGN -Aluminium housing; Wide voltage input 9-50V DC and wide operating temperature range -40°F ~ 167°F (-40°C ~ 75°C), suitable for harsh environments.
US LOCAL SUPPORT - 2 years warranty on hardware; lifetime software upgrade; US local technical support + Global after-hour support.

Note: RUTM54 is quite similar to another popular 5G router (RUTM50), but with two key difference: supports eSIM and global Telit module. So it is NDAA and TAA Compliant.

SKU: RUTM54

Datasheet

SAME DAY SHIPPING (BEFORE 2PM CST)

30 DAY RETURNS

24/7 US LOCAL + GLOBAL TECH SUPPORT

Frequently bought with

Teltonika RUTM54 Industrial eSIM 5G Cellular Router with Telit Modem (NDAA and TAA Compliant)

$699.00 USD

-

+

Verizon 5G Unlimited Data Plan with Public Static IP Address

$89.00 USD

-

+

RMS License - 12 Credits Pack for Teltonika Routers or Gateways

$24.00 USD

-

+

RMS License - 5-Year Pack for One Teltonika Router

$30.00 USD

-

+

The bundle

This Item

x1

+

This item

Teltonika RUTM54 Industrial eSIM 5G Cellular Router with Telit Modem (NDAA and TAA Compliant)

$699.00 USD

-

+

Frequently bought with

Verizon 5G Unlimited Data Plan with Public Static IP Address

$89.00 USD

-

+

RMS License - 12 Credits Pack for Teltonika Routers or Gateways

$24.00 USD

-

+

RMS License - 5-Year Pack for One Teltonika Router

$30.00 USD

-

+

Outdoor LTE & 5G/Wi-Fi/GPS antenna and waterproof enclosure for RUTX50 and RUTM50 routers (PR1ICA70)

$259.00 USD

5G Combo 7-in-1 Antenna, Outdoor Roof Type, 4x4 MIMO MOBILE, 2x2 WIFI, GNSS, works with Teltonika RUTM50

$199.00 USD

Overview Key Specification RMS License Ordering Process Comparison Reviews

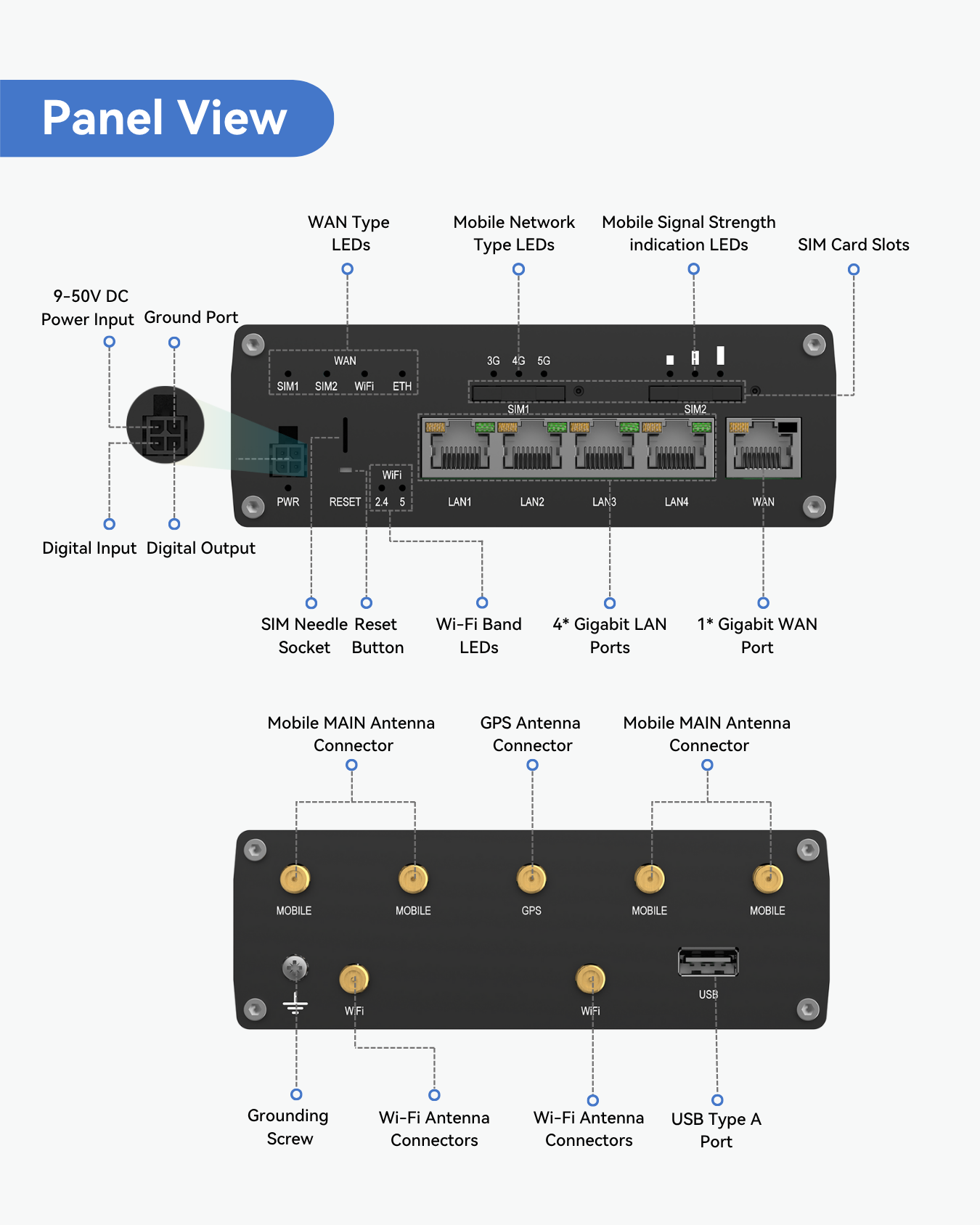

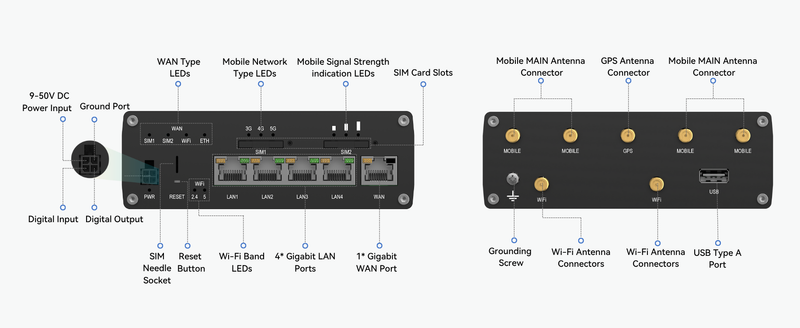

Panel View

Industrial Design

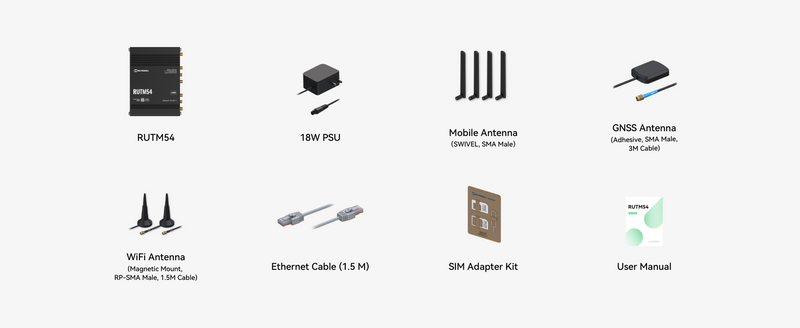

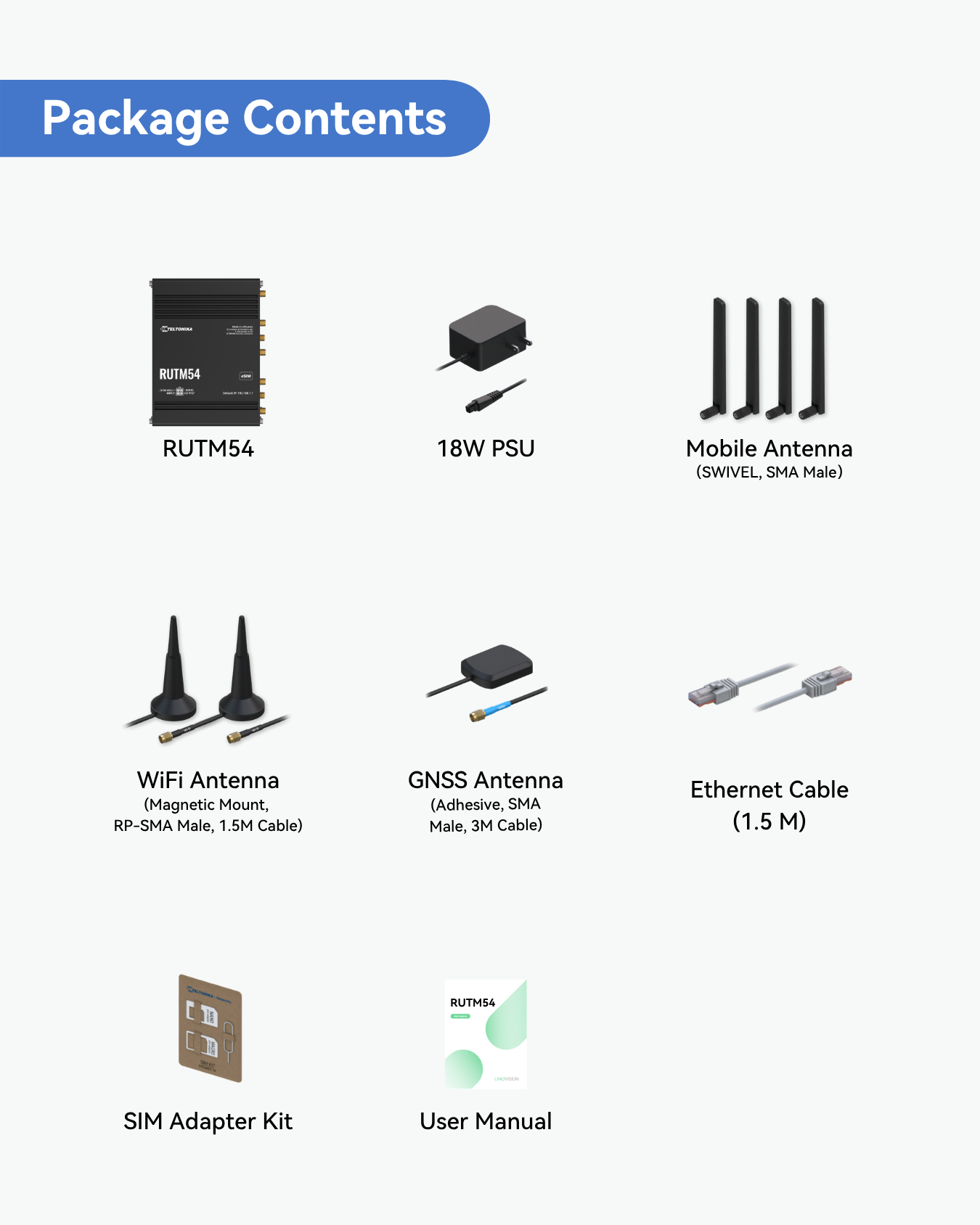

What's in the box?

Key Specification

Model

RUTM54

Mobile

5G Sub-6Ghz SA/NSA 2.5/3.4Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); 4G (LTE) – LTE Cat 19 ; 1.6Gbps DL, LTE Cat 18 211Mbps UL; 3G – 42 Mbps DL, 5.7Mbps UL

Operating system

RutOS (OpenWrt based Linux OS)

eSIM

Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans

Mobile features

SIM switch, Status, SMS, USSD, Black/White list, Multiple PDN, Band management, SIM idle protection service, SIM PIN code management, APN, Bridge, Passthrough

CPU

MediaTek, Dual-Core, 880 MHz, MIPS1004Kc

Wireless features

Wi-Fi security, SSID/ESSID, Wi-Fi users, Wireless Connectivity Features, Wireless MAC filter, Wireless, QR code generator, TravelMate

RAM

256 MB, DDR3

Network features

VoIP passthrough support, Connection monitoring, Firewall, Firewall status page, Ports management, Network topology, Hotspot, DHCP, QoS / Smart Queue Management (SQM), DNS over HTTPS, DDNS, Network backup, Load balancing, SSHFS, VRF support , Traffic Management

Storage

16MB serial NOR flash, 256MB serial NAND flash

Security

Authentication, Firewall, Attack prevention, VLAN, Mobile quota control, WEB filter, Access control, SSL certificate generation, 802.1x

Powering options

4-pin industrial DC power socket, 9 - 50 VDC

VPN and tunneling

OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale

SIM

2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders

Monitoring and Management

WEB UI, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, MODBUS, RMS

Antenna connectors

4 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS

Cloud solutions

RMS, ThingWorx, Cumulocity - Cloud of Things, Azure IoT Hub, AWS IoT Core

Ethernet

5 x RJ45 ports, 10/100/1000 Mbps: 1 x WAN (configurable as LAN), 4 x LAN

Services

OPC UA, Modbus, Data to Server, Modbus MQTT GATEWAY, DNP3, DLMS

Wi-Fi

802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)

Location Tracking

GNSS, Coordinates, NMEA, NTRIP, Server software, Geofencing

GNSS

GPS, GLONASS, BeiDou, Galileo and QZSS

Operating temperature

-40 °C to 75 °C

Inputs/Outputs

1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high, 1 x Digital Output, Open collector output, max output 30 V, 300 mA

Housing

Anodized aluminum housing and panels

Grounding

1 x Grounding screw

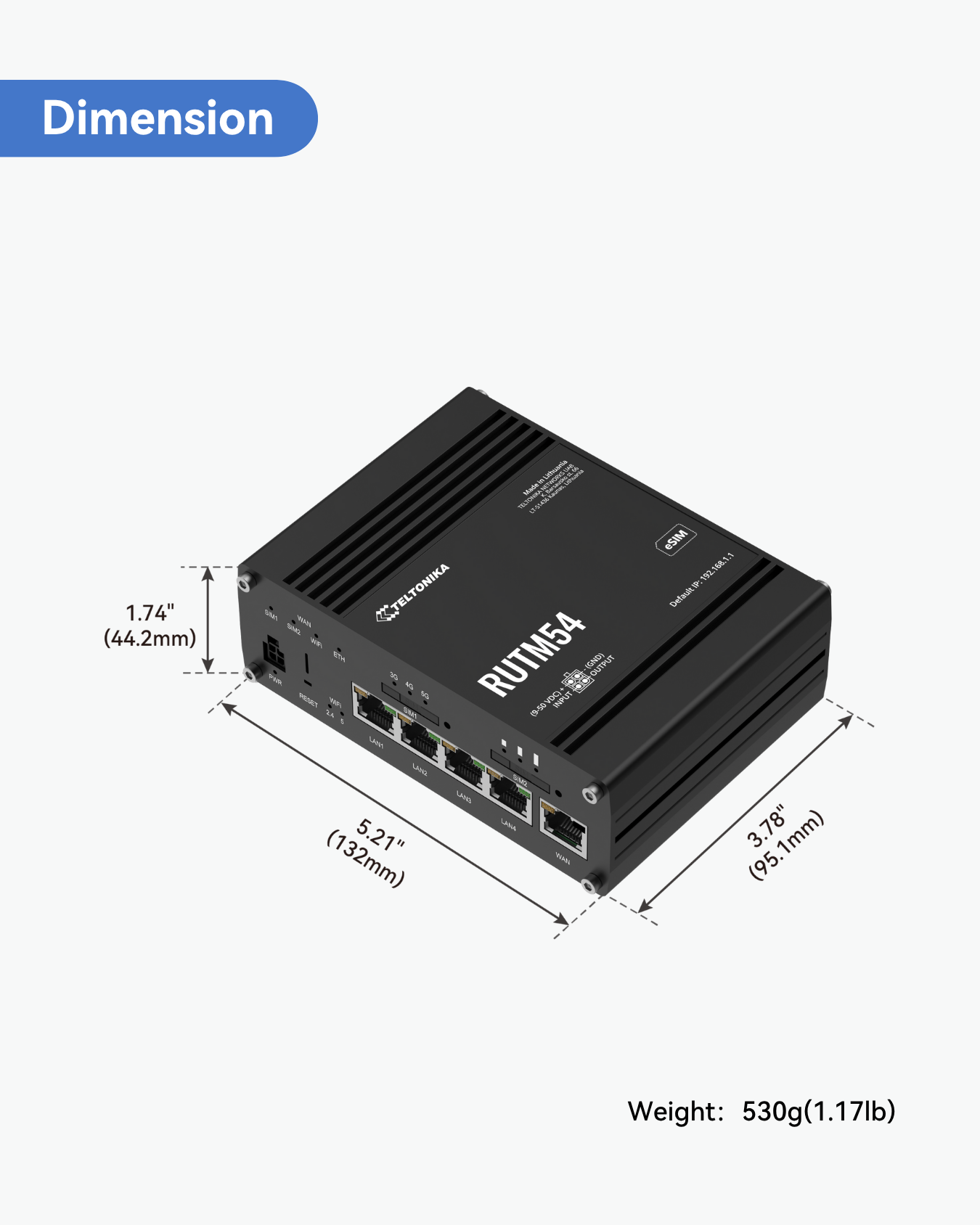

Dimensions (W x H x D)

132 x 44.2 x 95 mm

Status LEDs

4 x WAN type, 3 x Mobile connection type, 3 x Mobile connection strength, 10 x Ethernet port status, 1 x Power, 2 x 2.4G and 5G Wi-Fi

Weight

530 g

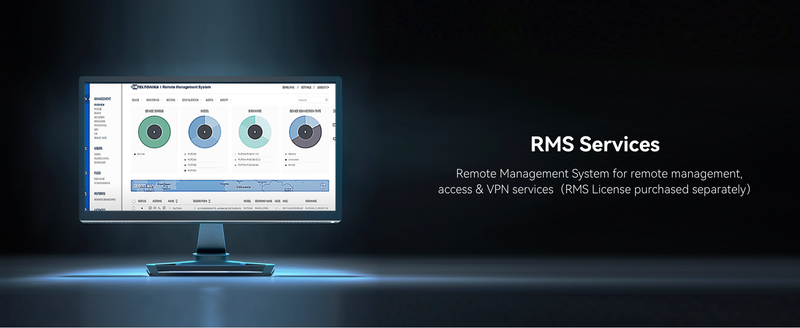

Teltonika RMS License Ordering Process

1. Select RMS License type and place the order.

RMS License - 1 Credit for Teltonika Router or Gateway

3. Go to RMS platform (https://rms.teltonika-networks.com/) and activating RMS License Code.

Click on your account in the right upper corner and a menu will show up.
There, click on Activate Code
You will be redirected to code redeem page
Paste the License Code you've been provided in our email and click Activate
If the code is valid, you will receive status message "Activate operation completed successfully" and resources will be available on the company the user belongs to (can be seen in the account menu under email), to view this quickly simply click on Resource summary and you will see the increase in resources after code activation.

4. Once the RMS License code is activated, it will be credited to your company account. You will then see the number of available Credits or 5-Year Pack increase accordingly.

Using Credits for the Device:
Go to Administration → Companies, select the target device, and enable Service and Auto Extend. The device will then start consuming credits automatically.

Using a 5-Year Pack for the Device:
Manual activation is required. Navigate to Administration → Companies, select the device, click Action → Set Pack, choose the appropriate pack, and then save. The device will then start consuming 5-Year Pack.

5. For any further questions, please feel free to please contact us at support@hinovision.com.

Comparison

Selection Guide

	Learn more >	Learn more >	Learn more >	Learn more >	Learn more >
Model	RUT241	RUT360	RUT956	RUTX11	RUTM50	RUTM54
Cellular Network	4G LTE Cat4	4G LTE Cat6	4G LTE Cat4	4G LTE Cat6	5G & 4G LTE Cat19	5G & 4G LTE Cat19 with Telit Module
WIFI	802.11b/g/n	802.11 b/g/n 2x2MIMO	802.11b/g/n	802.11 b/g/n/ac Wave2 (WIFI 5)	802.11 b/g/n/ac Wave2 (WIFI 5)	802.11 b/g/n/ac Wave2 (WIFI 5)
RS485	/	/	✔	/	/	/
I/O	1/1	1/1	1/1	1/1	1/1	1/1
LAN	2	2	4	4	4	4
SIM	1	1	2	2	2	2SIM, 7eSIM
GNSS	/	/	✔	✔	✔	✔
Dimension	83 × 25 x 74 mm	100 x 30 x 85mm	110 × 50 x 100mm	115 × 44.2 x 95.1mm	132 x 44.2 x 95.1 mm	132 x 44.2 x 95.1 mm
