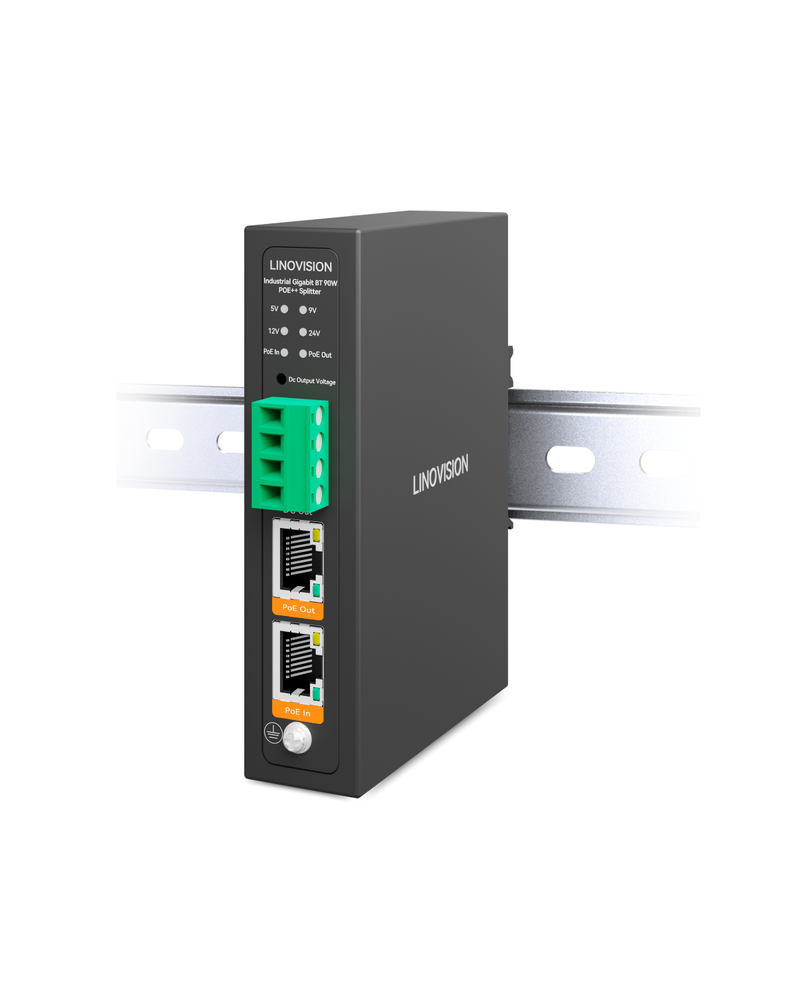

90W Gigabit PoE Splitter With IEEE802.3bt PoE Output and DC 5/9/12/24V Output (POE-SP02BT-POE)

SKU: POE-SP02BT-POE

Thank you for inquiring. Our sales team will be in touch with you shortly!
Submission failed. Please try again.
Free delivery   .       Delivery to
Choose your location x
Apply
Please enter a valid US zip code
-
+

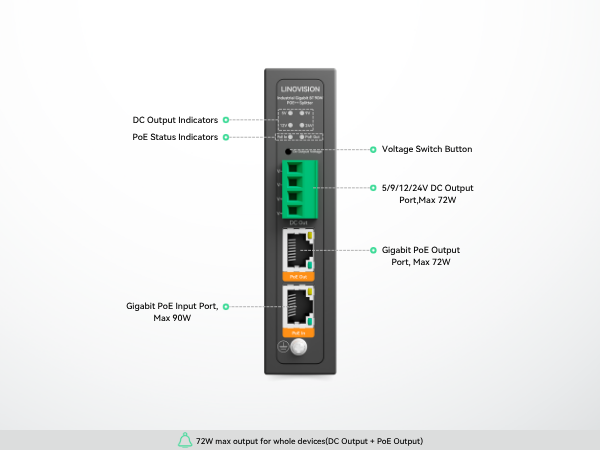

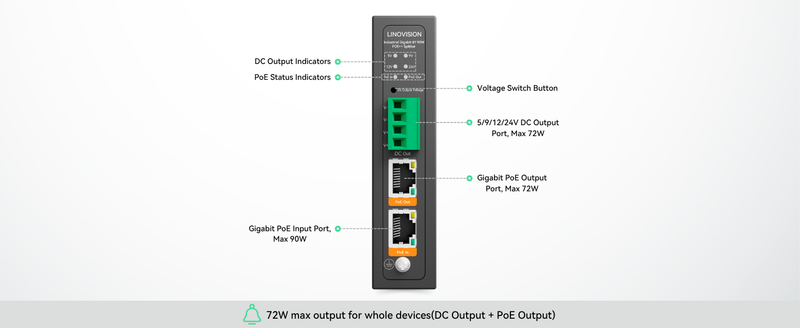

  • BT90W PoE SPLITTER - Split 90W IEEE802.3bt PoE to IEEE802.3bt POE and DC power outputs, max 72W in total.
  • IEEE802.3BT PoE OUTPUT - 1 x Gigabit IEEE802.3bt PoE output. Active PoE follows PD Detection -> Classification Type -> Power On procedures to prevent standard PD device from damaging. So Non-POE devices are also supported.

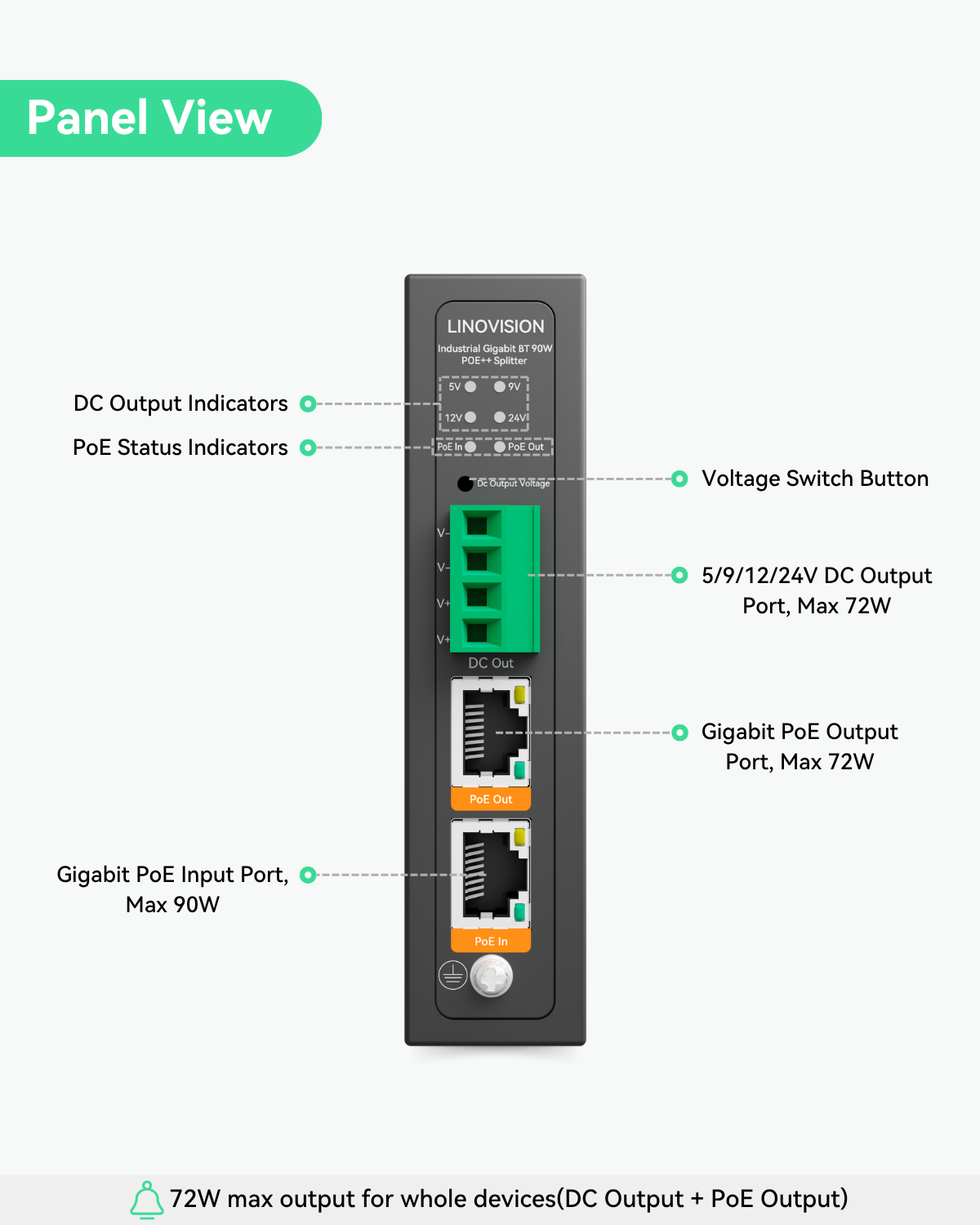

  • 5V/9V/12V/24V DC OUTPUT - 1 x DC 5V/14A or 9V/7.8A or 12V/5.9A or 24V/3A switchable output(terminal blocks).

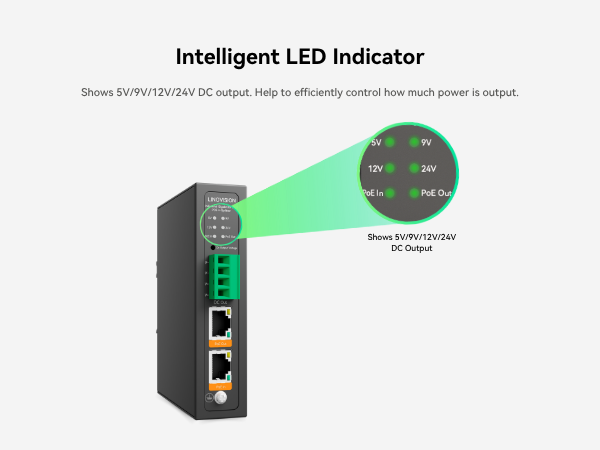

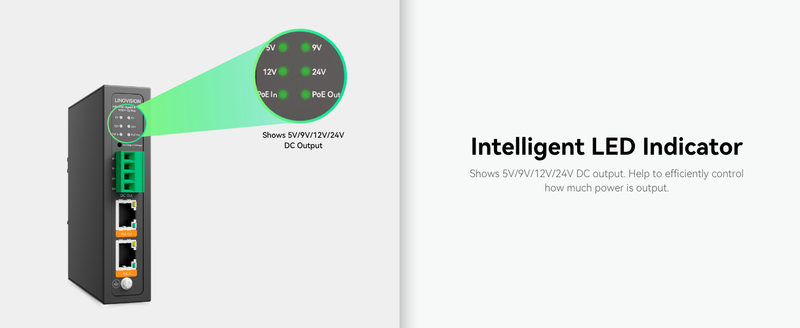

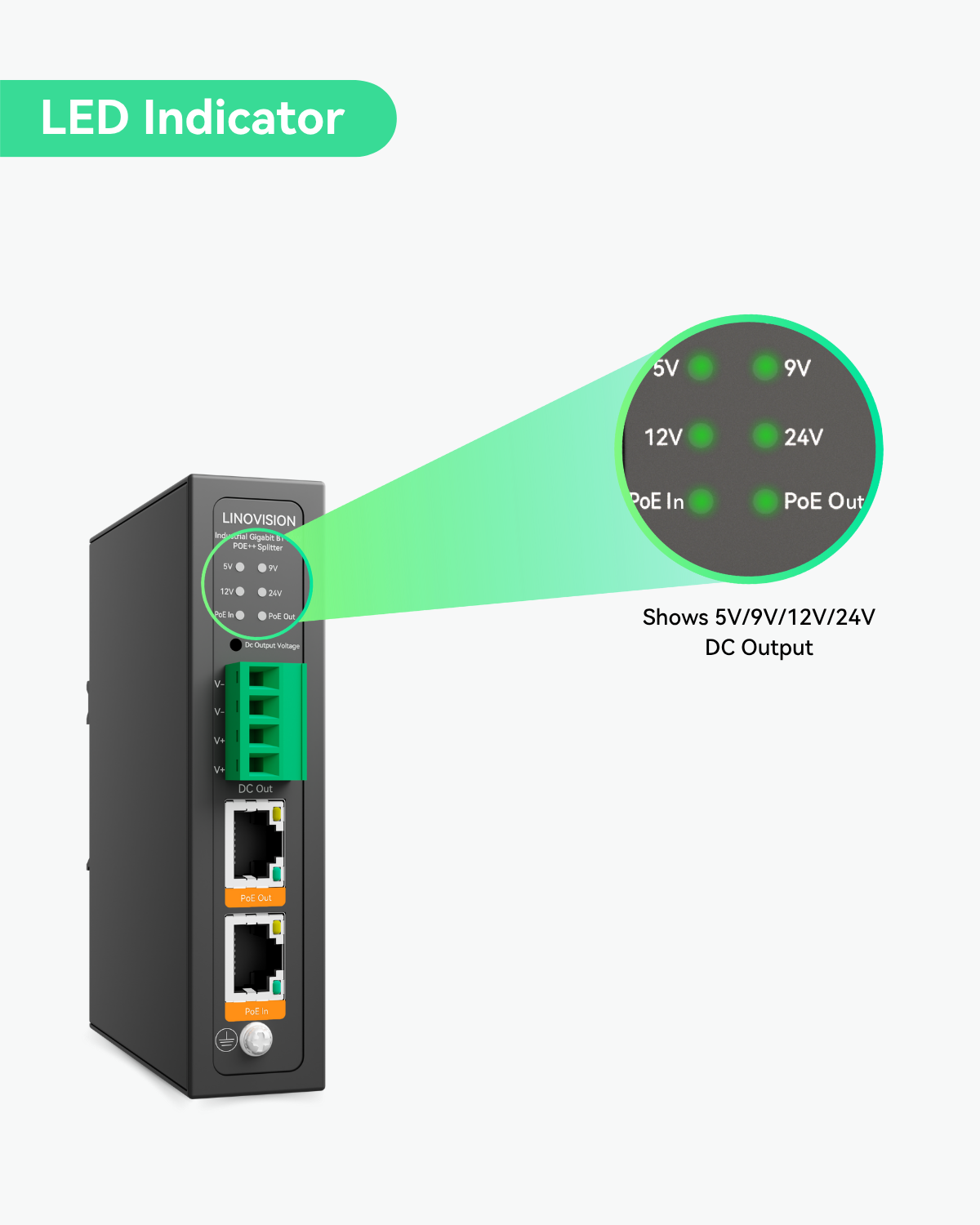

  • INTELLIGENT LED INDICATOR - Shows 5V/9V/12V/24V DC output. Help to efficiently control how much power is output.

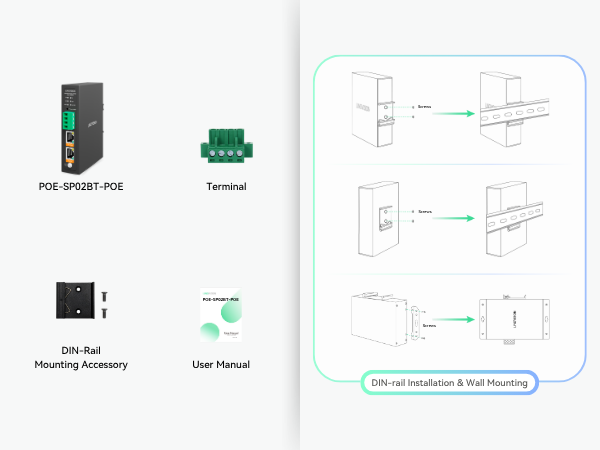

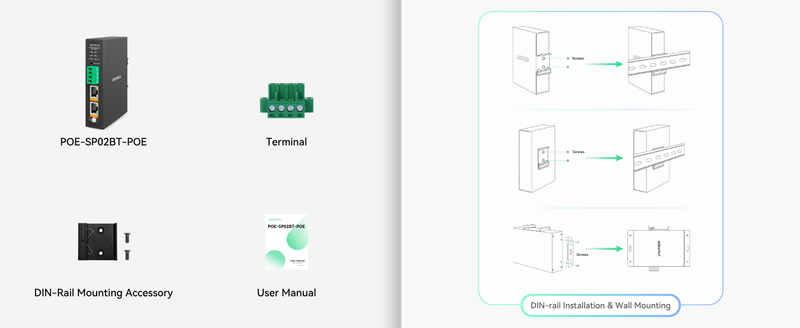

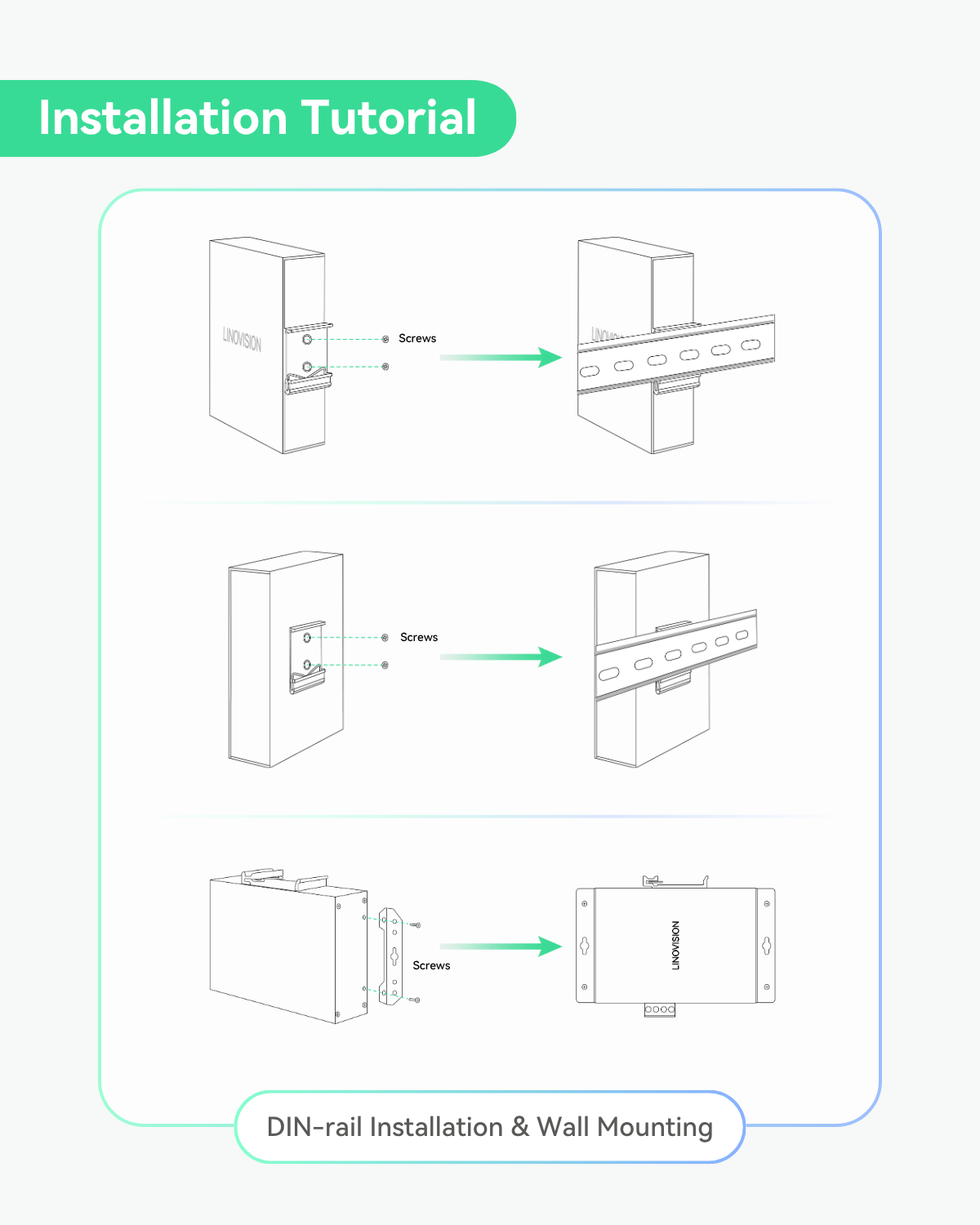

  • RUGGED DESIGN - For harsh environment with wide temperature range between -40 ℉ ~ 167 ℉ (-40℃ ~ 75 ℃). Short-circuit protection. Thermal cut. Din rail mount.

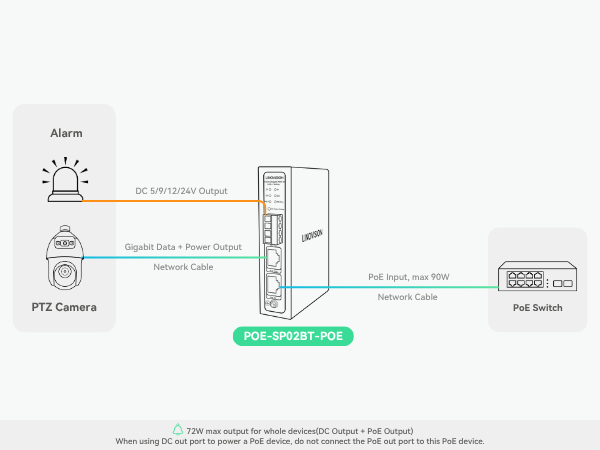

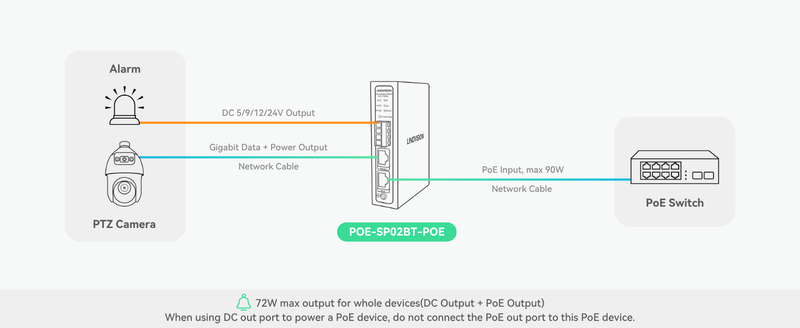

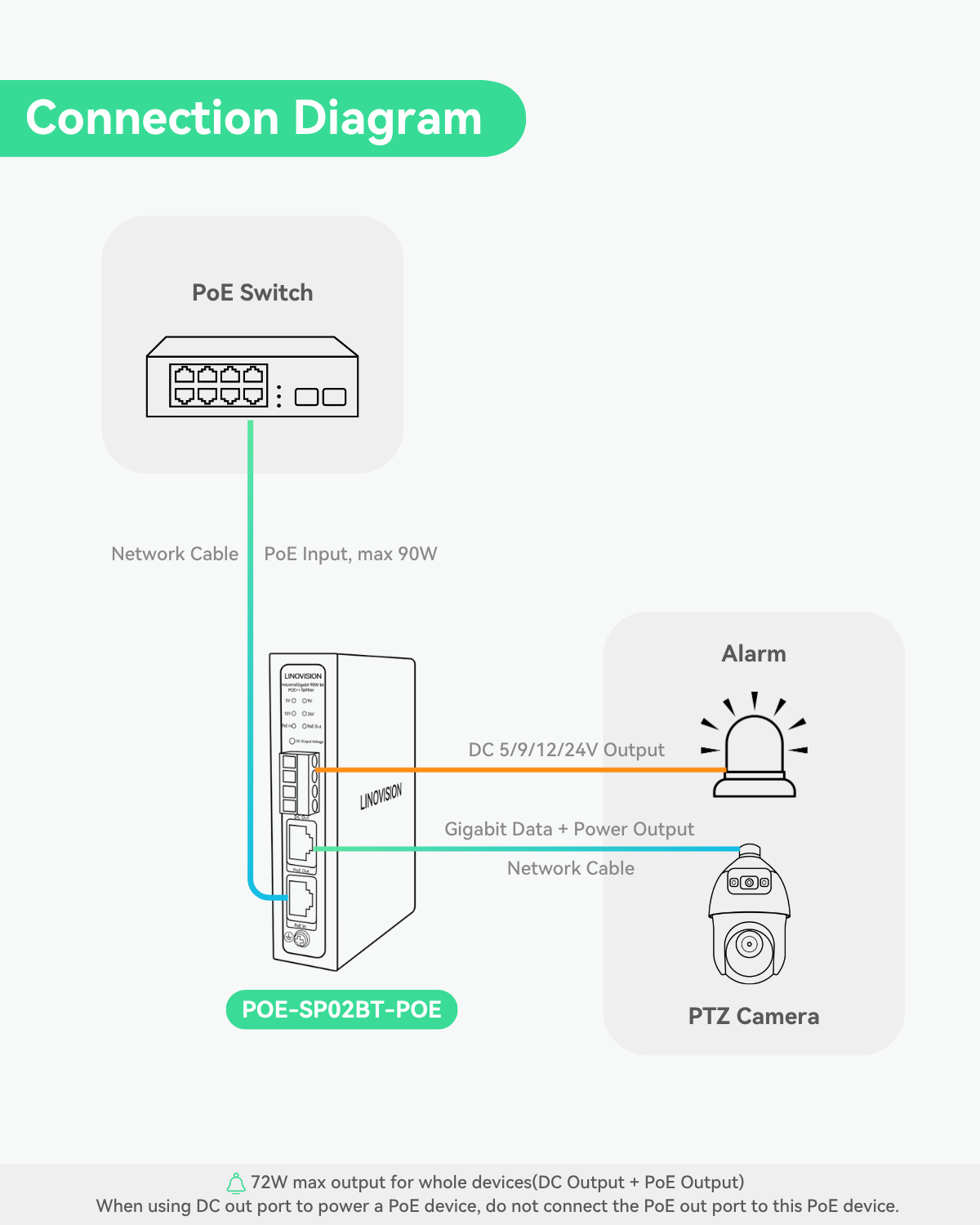

  • APPLICATIONS - Provide a shared 72W power to PoE devices or Non-PoE devices simultaneously, like the outdoor PTZ camera with extra wiper or IR, IP cameras, video server, Wireless AP, LED lighting, VoIP phone, etc.

Noted

POE-SP02BT-POE needs to work with standard IEEE802.3bt/at standard PoE switches/injectors, like POE-SW508G & POE-IN9001. Please do not connect it with non-standard BT POE Switches or Injectors, including POE-IN90W (Passive PoE version).
