Industrial Gigabit 30W PoE Splitter with Switchable DC12V/24V Output and Passive PoE output

3D Model

$39.00 USD
Back Ordering

Produc variants

30W PoE Splitter - Split IEEE802.3af/at PoE to Switchable DC12V/24V and Passive PoE Output
DC12V/DC24V OUTPUT - For Non-POE IP cameras, access reader terminals, IP speakers, Routers, etc.
PASSIVE PoE OUTPUT - For Wireless AP, Wireless Bridges, or other terminals that accept Passive 12V/24V PoE.
Gigabit Speed - All ports support 10M/100M/1000Mbps transmission bandwith.
Compact Dimension - Full metal design, compact dimension 3.26'' x 2.09'' x 1.02''(82.7mm x 53mm x 25.8mm).

This item is currently on backorder but you can still purchase it now and we'll ship as soon as more become available.

SKU: POE-SP1224POE

Datasheet

SAME DAY SHIPPING (BEFORE 2PM CST)

30 DAY RETURNS

24/7 US LOCAL + GLOBAL TECH SUPPORT

Frequently bought with

Industrial Gigabit 30W PoE Splitter with Switchable DC12V/24V Output and Passive PoE output

$39.00 USD

(POE-IN9001U) Gigabit 90W 802.3bt PoE Injector, Compatible with standard and Legacy non-Standard PD device

$49.00 USD

(POE-SW508G) Industrial 8 Ports Full Gigabit PoE Switch with 4 BT90W Ports, Total PoE Budget 120W

$94.99 USD

5 Ports DC12-48V Input Full Gigabit POE Switch with Voltage Booster - LINOVISION US Store

(POE-Switch0504GD) 5 Ports DC9-54V Input Full Gigabit POE Switch with Voltage Booster

$94.99 USD

The bundle

This Item

This item

Industrial Gigabit 30W PoE Splitter with Switchable DC12V/24V Output and Passive PoE output

$39.00 USD

Frequently bought with

(POE-IN9001U) Gigabit 90W 802.3bt PoE Injector, Compatible with standard and Legacy non-Standard PD device

$49.00 USD

(POE-SW508G) Industrial 8 Ports Full Gigabit PoE Switch with 4 BT90W Ports, Total PoE Budget 120W

$94.99 USD

(POE-Switch0504GD) 5 Ports DC9-54V Input Full Gigabit POE Switch with Voltage Booster

$94.99 USD

90W Gigabit PoE Splitter With IEEE802.3bt PoE Output and DC 5/9/12/24V Output (POE-SP02BT-POE)

$69.00 USD

(POE-SP01BTV) Industrial 802.3bt Gigabit 90W PoE++ Splitter with Adjustable Output Voltage DC 3-36V and LED Display

$99.00 USD

30W PoE Splitter to 100Mbps Ethernet with 2 ports DC12V output Output (POE-SP01, 2 pack)

$21.99 USD

DC12V Waterproof POE Splitter, Outdoor Power Over Ethernet (Splitter POE-SP01P,2 pack)

$17.90 USD

OverView Key Specification Comparison Resources Reviews

LINOVISION Industrial Gigabit 30W PoE Splitter with Switchable DC12V/24V Output and Passive PoE output for Wireless Bridges Like UB Loco5AC, designed for Cameras and IoT systems

Outstanding Features

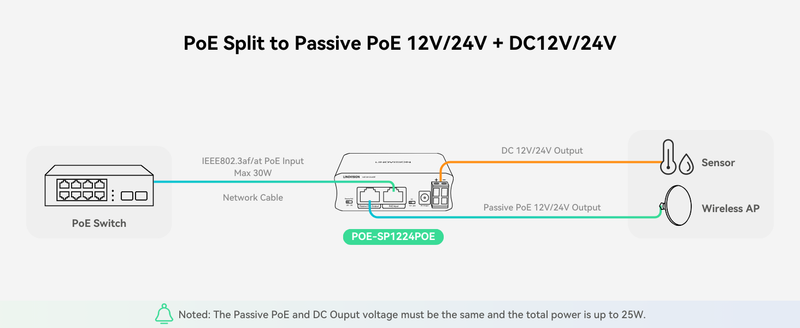

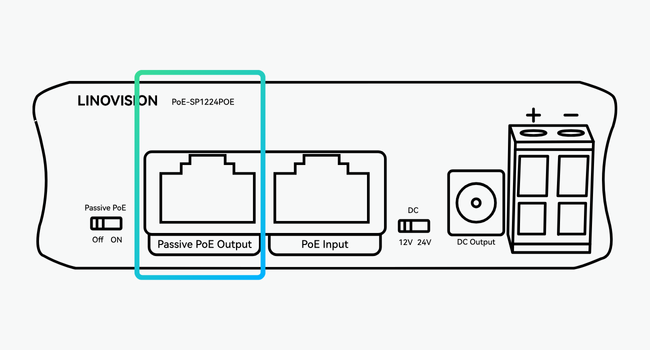

Passive PoE Output

For Wireless AP, Wireless Bridges, or other terminals that accept Passive 12V/24V POE

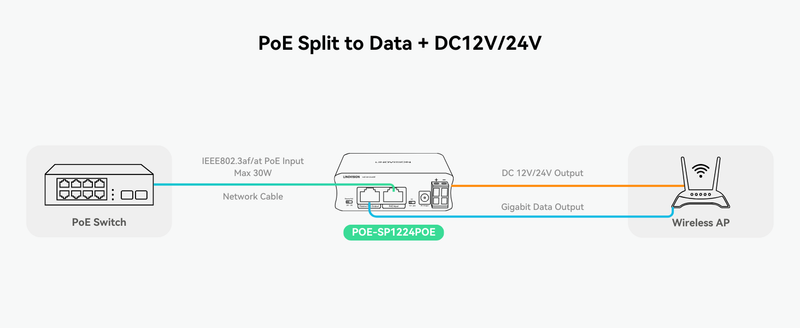

DC12V/DC24V output

For Non-POE lP cameras, access reader terminals, lP speakers, Routers, etc

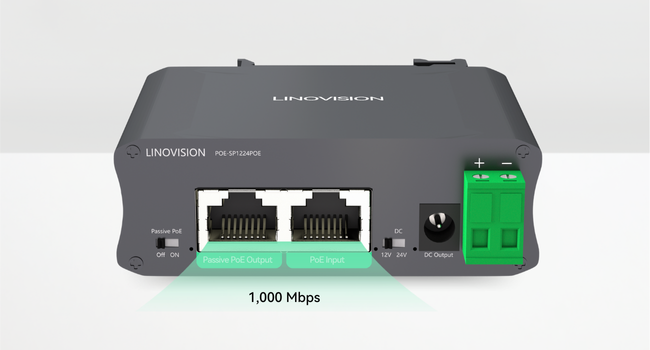

Gigabit Speed

All ports support 10M/100M/1000Mbps transmission bandwith

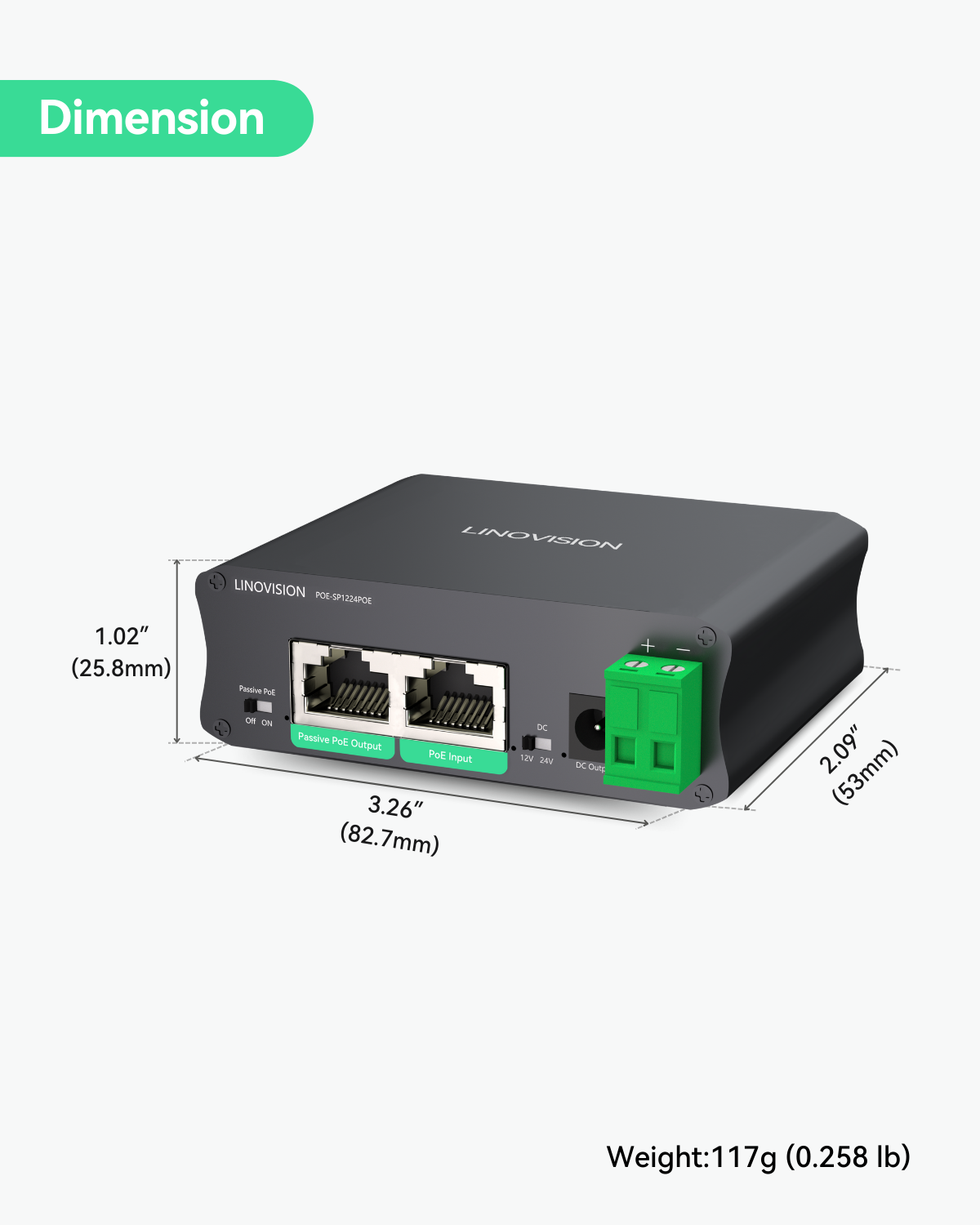

Compact Design

Full metal design, compact dimension 3.26"x 2.09"x 1.02"(82.7mm x 53mm x 25.8mm).

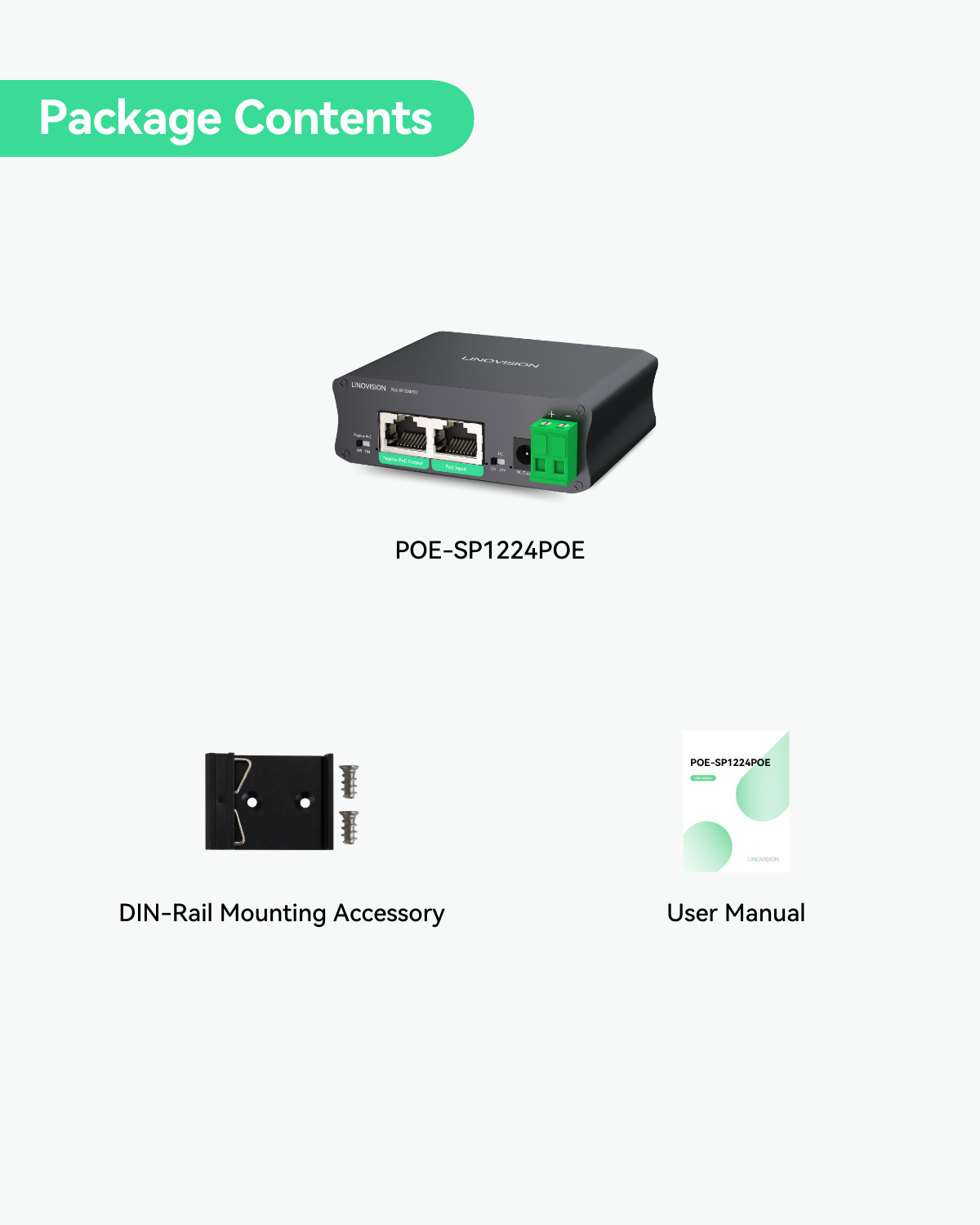

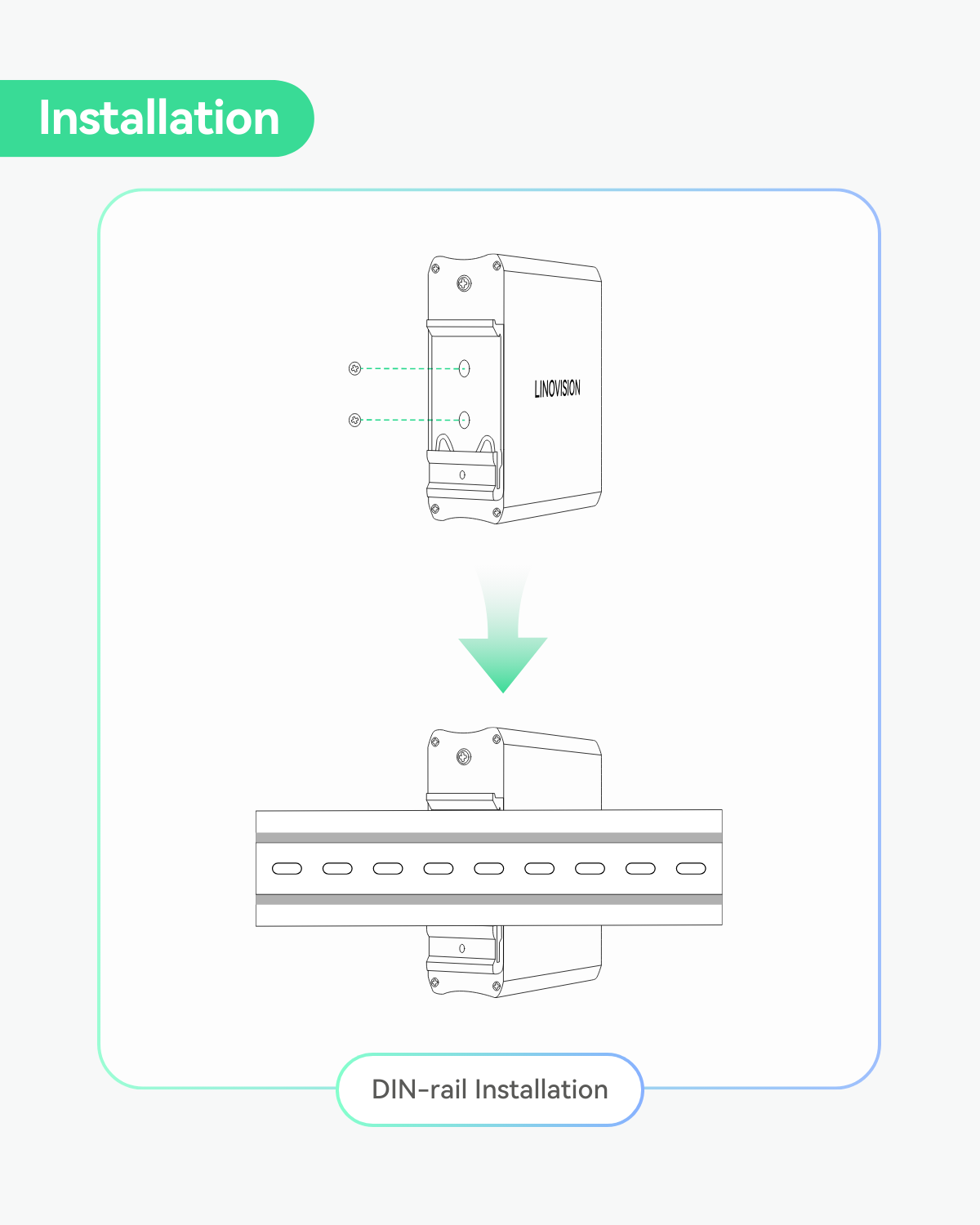

Package & Installation

Key Specification

Model	POE-SP1224POE
Mechanical Specs
Dimensions (WHD)	82.7 x 53 x 25.8 mm (3.26 x 2.09 x 1.02 in)
Weight	0.117 kg (0.258 lb)
Material	Aluminum
Installation	DIN-Rail
Interfaces
PoE Input	1 * 10/100/1000Base-T RJ45 Port
Data Output	1 * 10/100/1000Base-T RJ45 Port
DC Output	DC Jack (5.5/2.1 mm Female) and Terminal Connector (Alternative)
Grounding	Grounding Terminal
PoE Input
Standard	IEEE 803.2af/at
Power Supply	Mode A & Mode B
Power Requirements	PoE 36-60 V Max.30 W
Power Consumption	≤25.4 W
Output
DC Output	12 V/24 V (DIP Switch control)
PoE & Data Output	Passive PoE 12 V/24 V or Gigabit Data (DIP Switch control)
Environment
Operating Temperature	-40℃ to 75℃ (-40℉ to 167℉)
Storage Temperature	-40℃ to 85℃ (-40℉ to 158℉)
Humidity	0% to 95% non-condensing
Surge Protection	Differential mode ±3 KV, Common mode ±6 KV
Electrostatic Standard	Contact ±6 KV, Air ±8 KV

Comparison

LINOVISION POE Splitter Selection Guide

	Learn more >	Learn more >	Learn more >	Learn more >	Learn more >		Learn more >	Learn more >	Learn more >	Learn more >
Model	POE-SP24V	POE-SP01 (2 pack)	POE-SP01P (2 pack)	POE-SP01C (2 pack)	POE-USBC01	POE-SP1224POE	POE-SP30	POE-SP01BTV	POE-SP02BT-POE	POE-SP02BTV
PoE Input	IEEE803.2af/at Max 30W	IEEE803.2af/at Max 30W	IEEE803.2af/at Max 30W	IEEE803.2af Max 15W	IEEE802.3af/at Max 20W	IEEE803.2af/at Max 30W	IEEE803.2af/at Max 30W	IEEE802.3af/at/bt Max 90W	IEEE802.3af/at/bt Max 90W	IEEE802.3af/at/bt Max 90W
Output1	Passive 24V POE	12V DC	USB-C output	USB-C output	USB-C output	12/24V DC	5/9/12/18V DC switchable	3 ~ 36V DC adjustable	5/9/12/24V DC switchable	24V DC
Output2	/	/	/	/	/	Passive POE 12/24V	/	/	48V POE (Active PoE）	3 ~ 36V DC adjustable
Network Speed	Gigabit	10/100Mbps	10/100Mbps	10/100Mbps	10/100Mbps	Gigabit	Gigabit	Gigabit	Gigabit	Gigabit
Waterproof	✔	/	✔	/	/	/	/	/	/	/
Dimension	/	3.14x1.10x0.82"(80x28x21mm)	4.1x0.7"(105x17mm)	3.14x1.10x0.82"(80x28x21mm)	3.54x1.61x0.94"(90x41x24mm)	3.27x2.48x1.02"(83x63x25.8mm)	3.07x2.87x1.10"(78x73x28mm)	3.93x2.75x1.18"(100x70x30mm)	4.69x3.37x1.1"(119x85.5x28mm)	3.74x2.75x1.14"(95x70x29mm)
Installation	/	/	/	/	/	DIN-Rail/ Wall-Mount	Wall-Mount	DIN-Rail/ Wall-Mount	DIN-Rail/ Wall-Mount	DIN-Rail/ Wall-Mount

Resources

Datasheet(1)

POE-SP1224POE Datasheet
